JGM857KWHEEL LOADER

High technology with new apperance.
Come with German ZF Powershift
and America Meritor Axle.

*SPECS
Operating Weight 17,800 kg
Rated Load 5,000 kg
Bucket Capacity 2.4 - 4.5 m³
Max Lifting Height 4,160 mm
Rated Power 162 kw

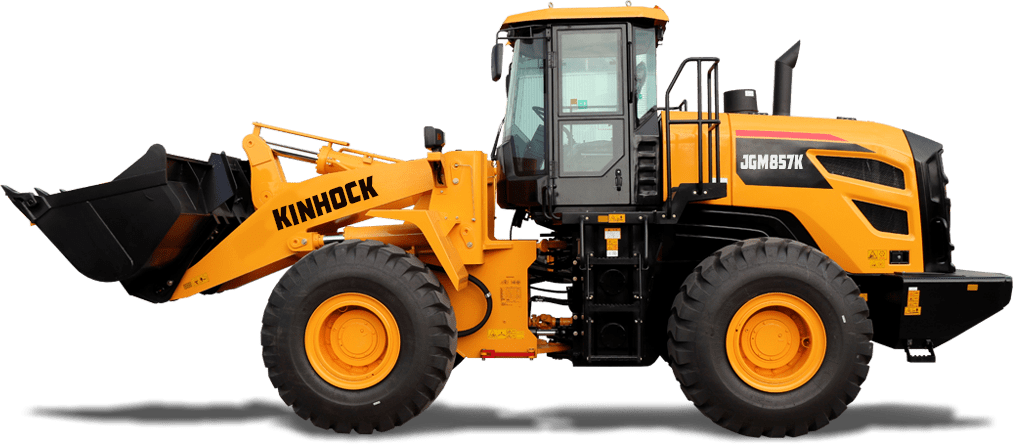

5 Ton Wheel Loader JGM857K

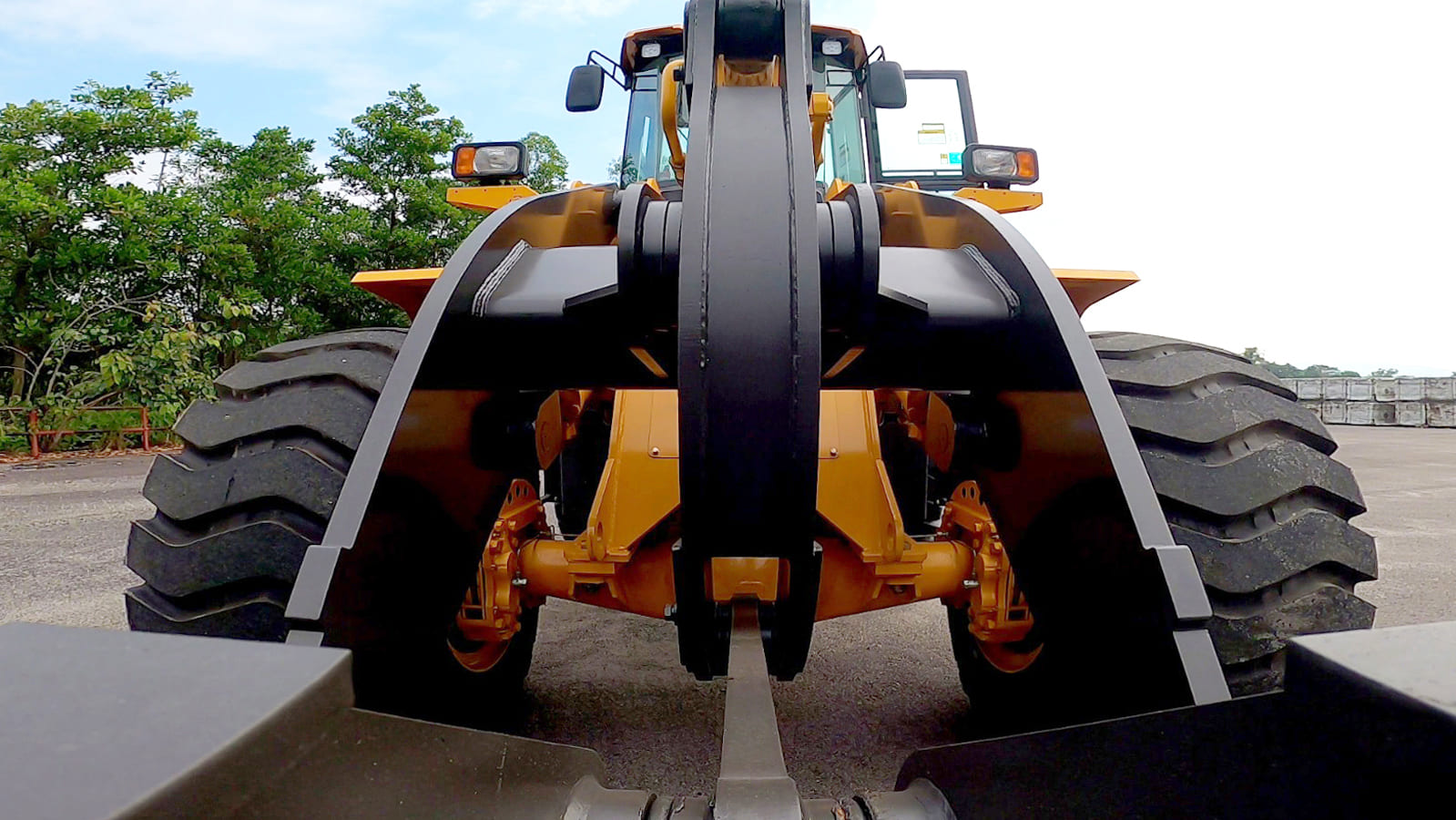

JGM857K wheel loader heavy-duty axle

HEAVY-DUTY AXLES

Use the most heavy-duty axles by America Meritor which is the world's largest independent manufacturer.

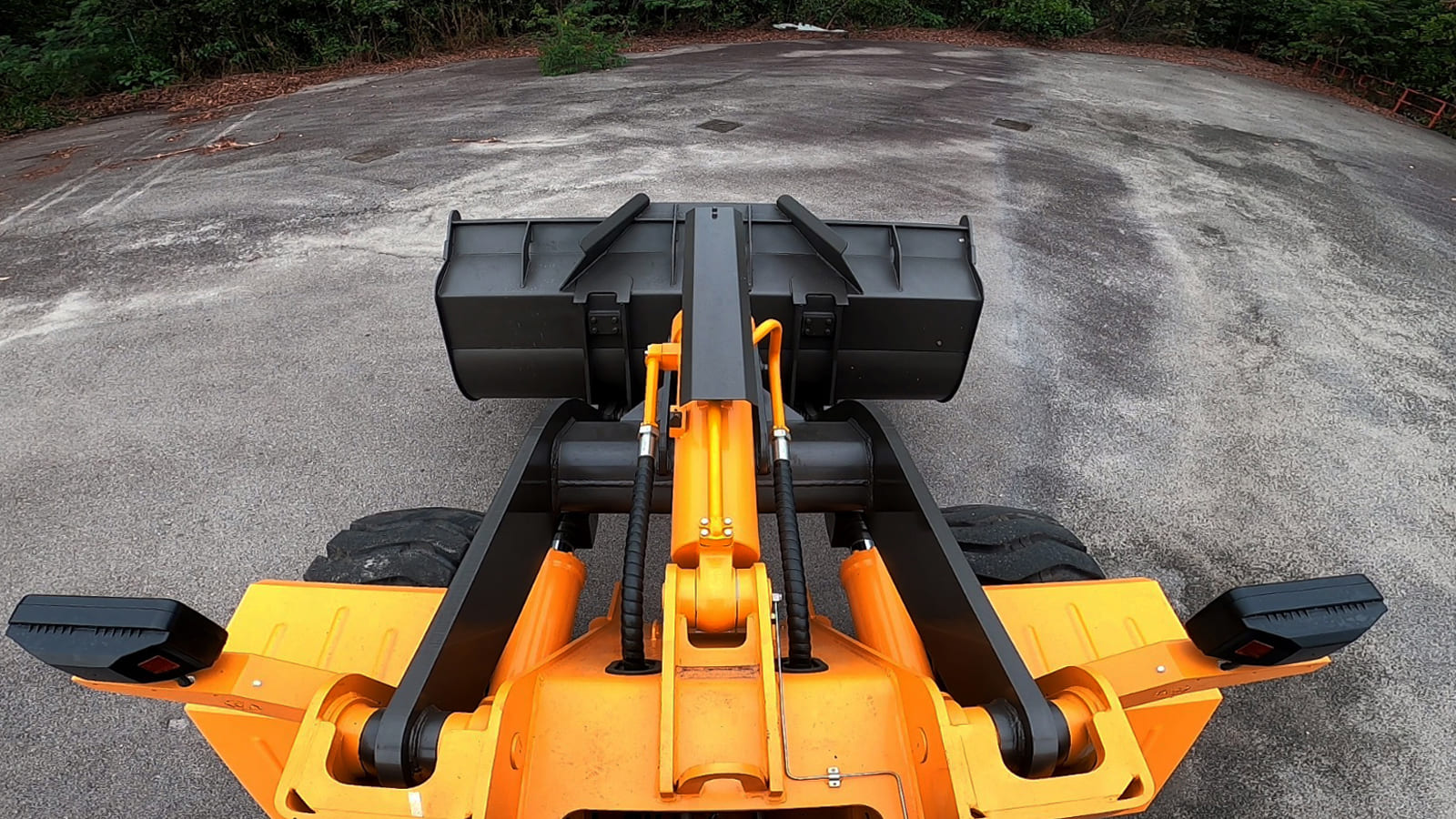

NEW BUCKET

Adjustable bucket limit ensures that both sides limit block and bottom plate are close tight during withdraw.

JGM857K wheel loader new bucket

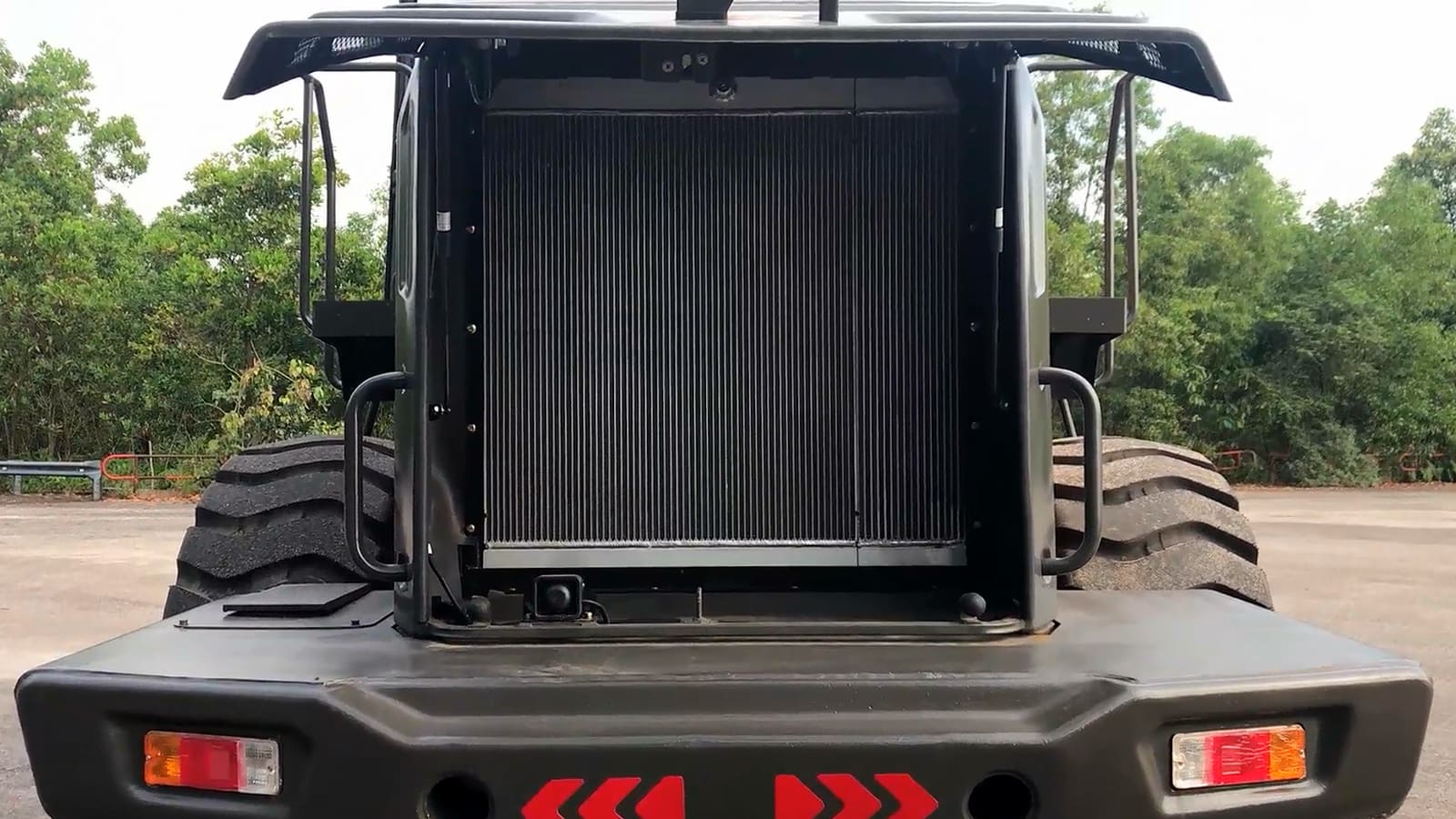

JGM857K wheel loader cooling system

COOLING SYSTEM

Single-layer parallel design. Hydraulic oil radiate separated with torque converter thus eliminating the problem of oil channeling from the root.

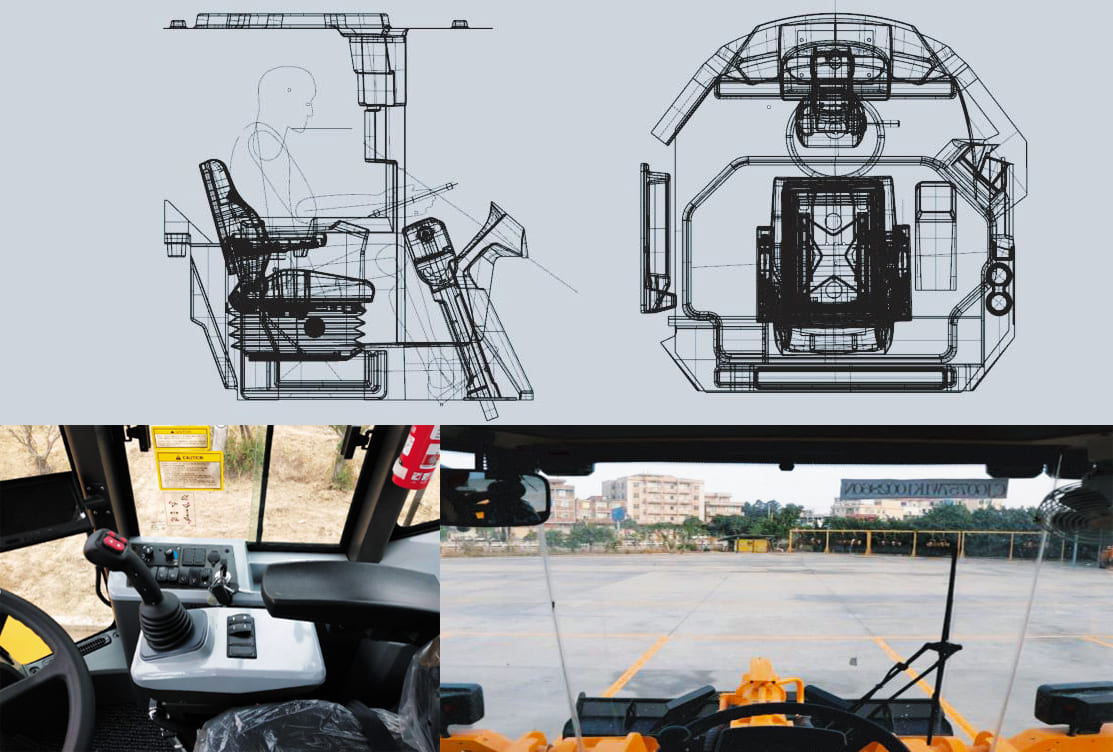

LUXURY CAB WITH PANORAMIC VIEW

Man-machine engineering simulation design, comfort and convenience to operate. Large front and rear view mirror provide the best vision for driver.

JGM857K wheel loader luxury cab with panoramic view
JGM857K
SPECIFICATIONS
Specifications Parameter Unit
Operating Weight17800kg
Rated Load5000kg
Bucket Capacity2.4 - 4.5
Max. Lifting Height4160mm
Unloading Height3100mm
Unloading Distance at Max. Lifting Height1220mm
Bucket Withdrawing Angle on Ground45°
Bucket Withdrawing Angle at Max. Lifting Height53°
Unloading Angle45°
Digging Depth35mm
Max. Breakout Force≥ 170kN
Ground Clearance408mm
Wheel Track2290mm
Overall Dimension (LxWxH)8000 x 2850 x 3540mm
Raising Time≤ 5.5sec
Total Cycling Time≤ 9.8sec
Wheelbase3300mm
Steering Angle (at any side)35°
Min. Turn Radius7050mm
Engine ModelWEICHAI WD10G220E23
Engine Rated Power162KW
Max. Travel Speed (Forward 4)38.5km/h
Max. Travel Speed (Reverse 3)25.5km/h
Fuel Tank Capacity280L
Hydraulic Oil Tank Capacity280L
