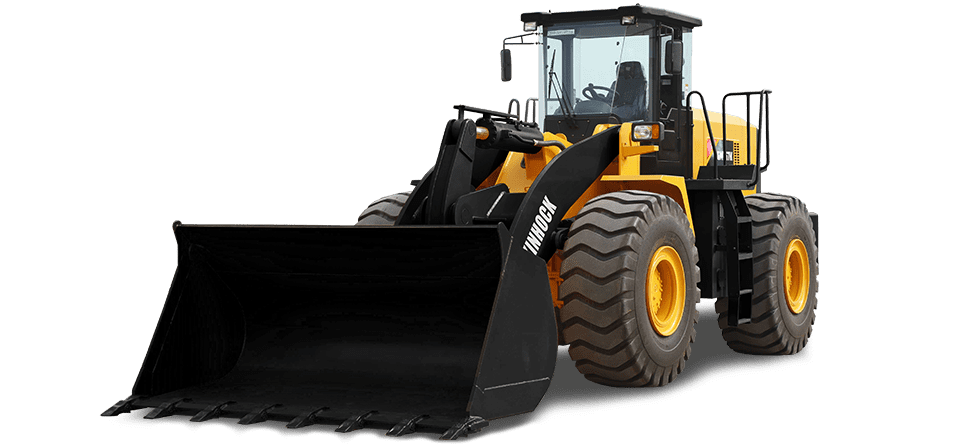

JGM767KWHEEL LOADER

Powerful lifting and fuel efficient.
Use the most heavy-duty
America Meritor Axle.

*SPECS
Operating Weight 21,000 kg
Rated Load 6,000 kg
Bucket Capacity 3.5 - 5.5 m³
Max Lifting Height 4,373 mm
Rated Power 178 kw
6 Ton Wheel Loader JGM767K
JGM767K wheel loader heightened rear plate bucket design

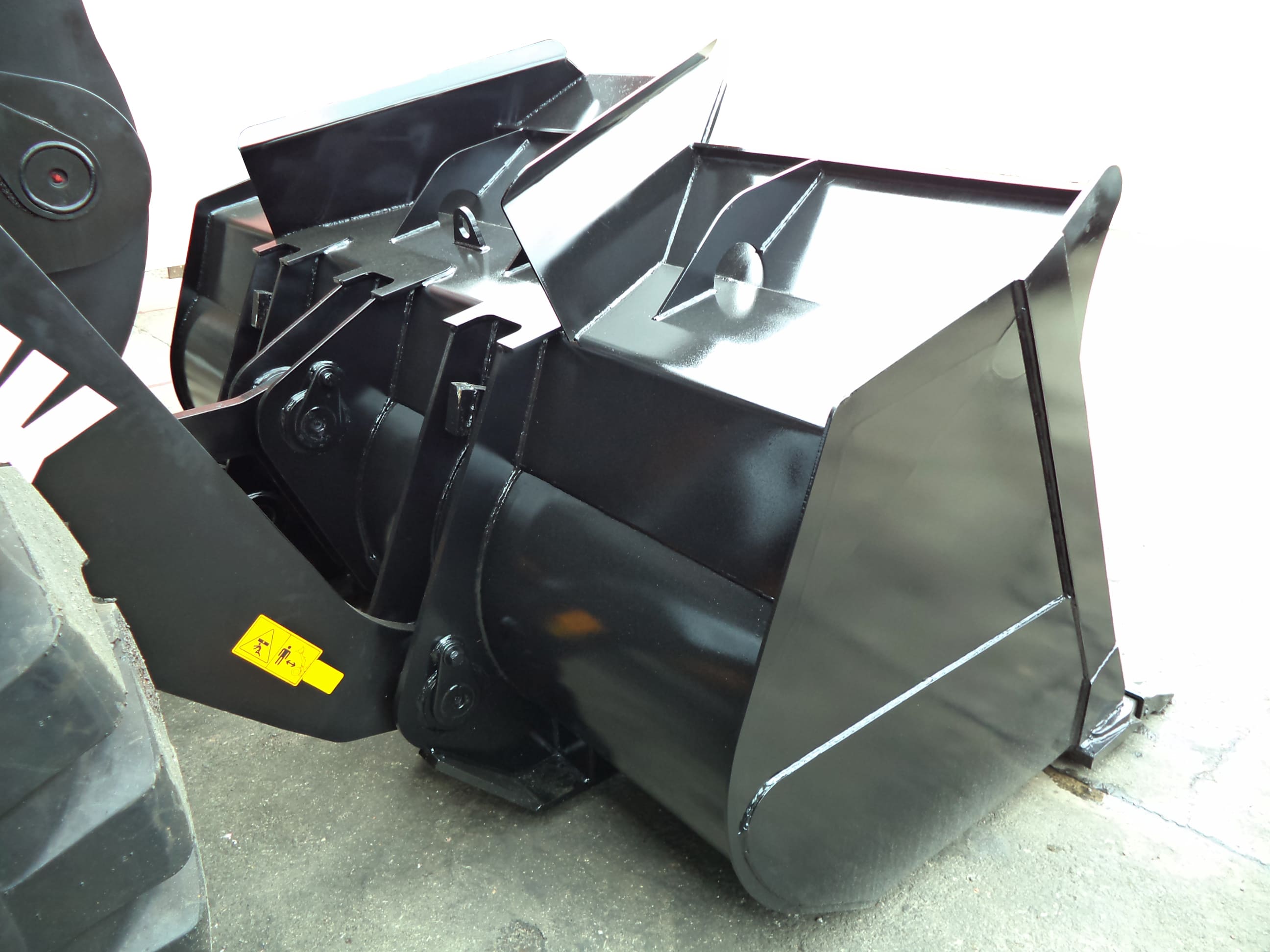

NEW BUCKET DESIGN (optional)

The heightened rear plate prevent spillage of materials and adjustable bucket limit improved loader cycle time. Wear-resistant gaskets are added to each pin shaft to reduce shaking.

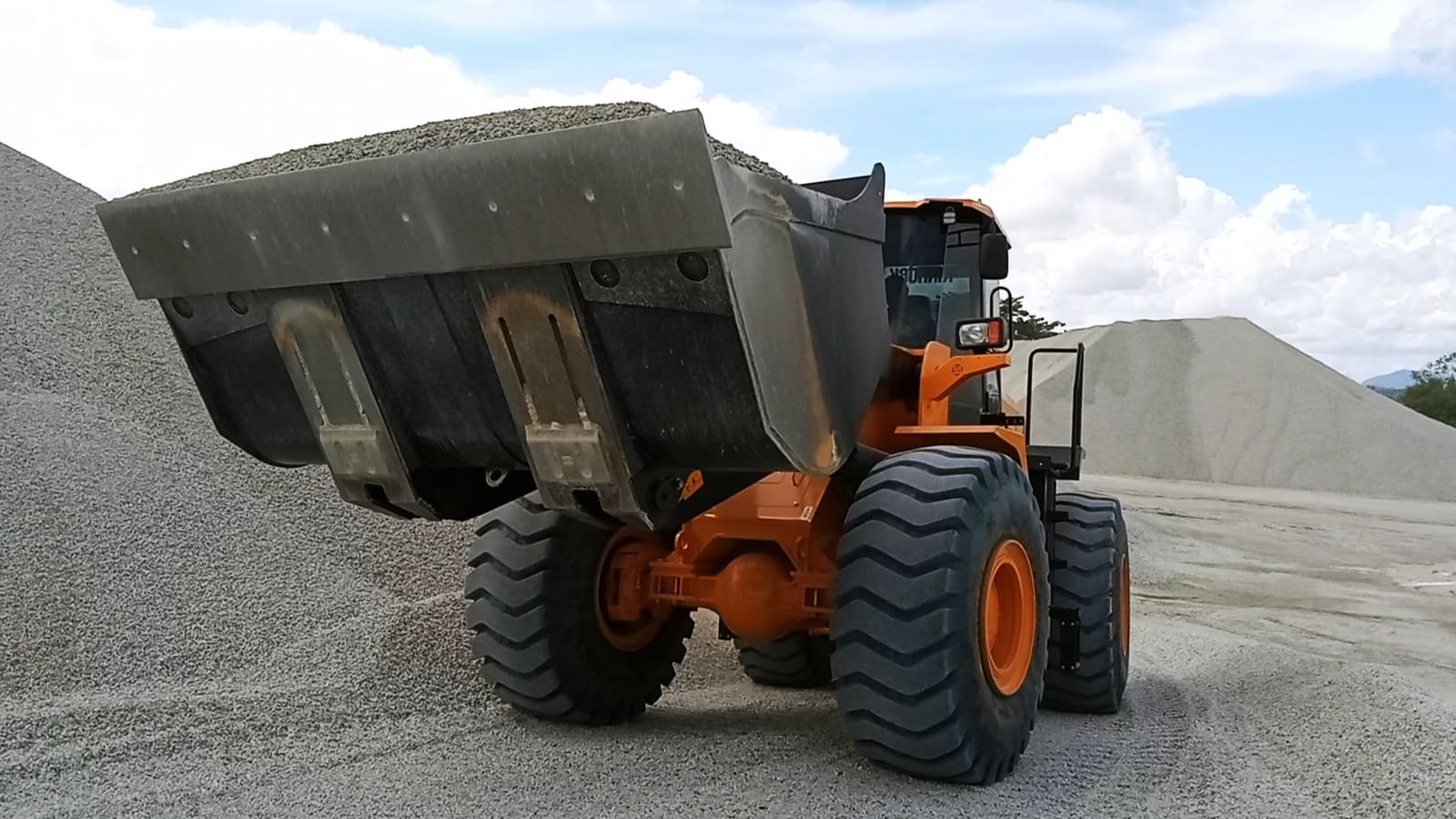

HEAVY-DUTY AXLES

Use the most heavy-duty axles by America Meritor which is the world's largest independent manufacturer.

JGM767K wheel loader meritor heavy duty axles
JGM767K wheel loader continental hoses

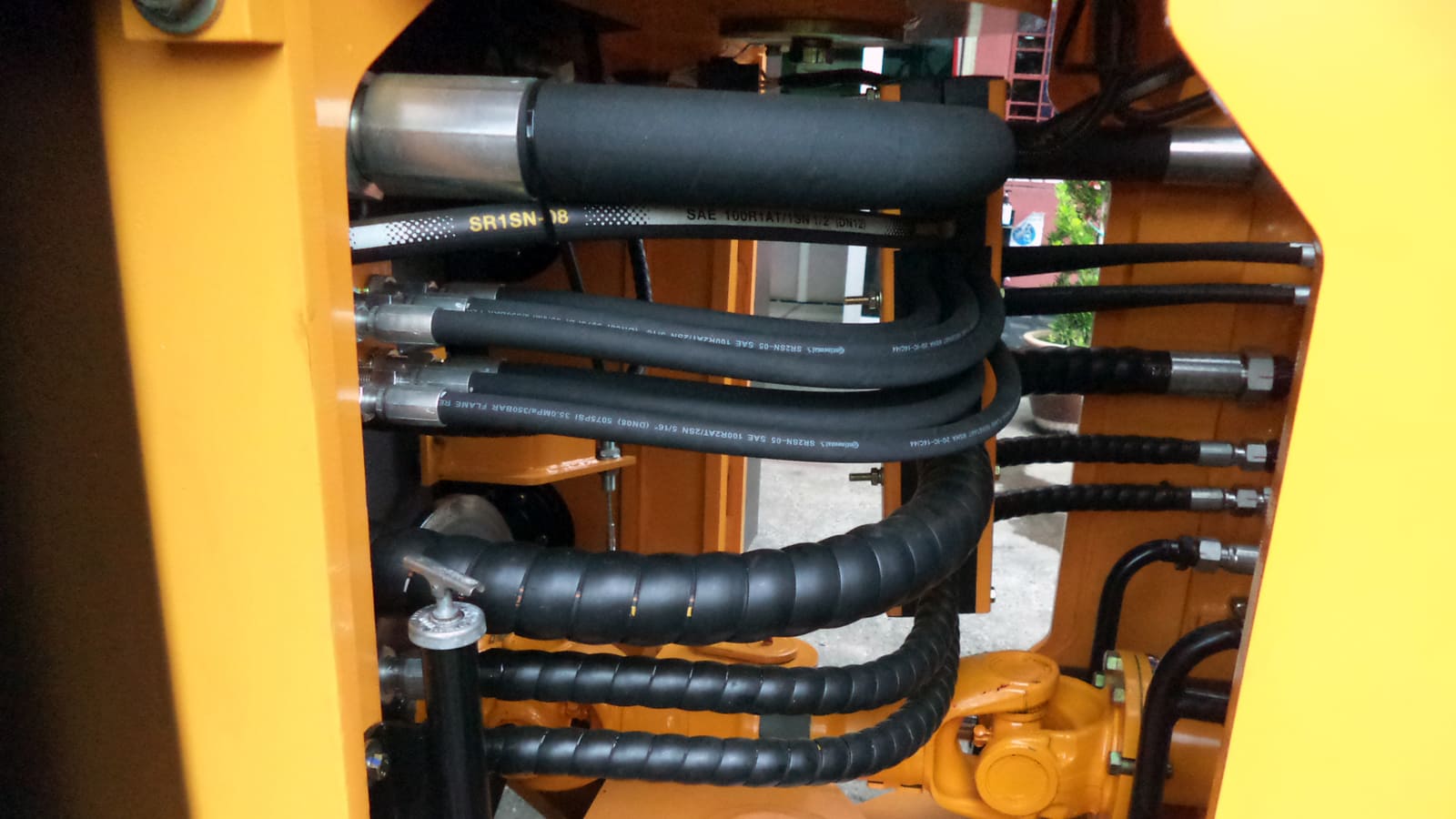

CONTINENTAL HOSES

Branded Continental hoses are more efficient, robust and reliable.

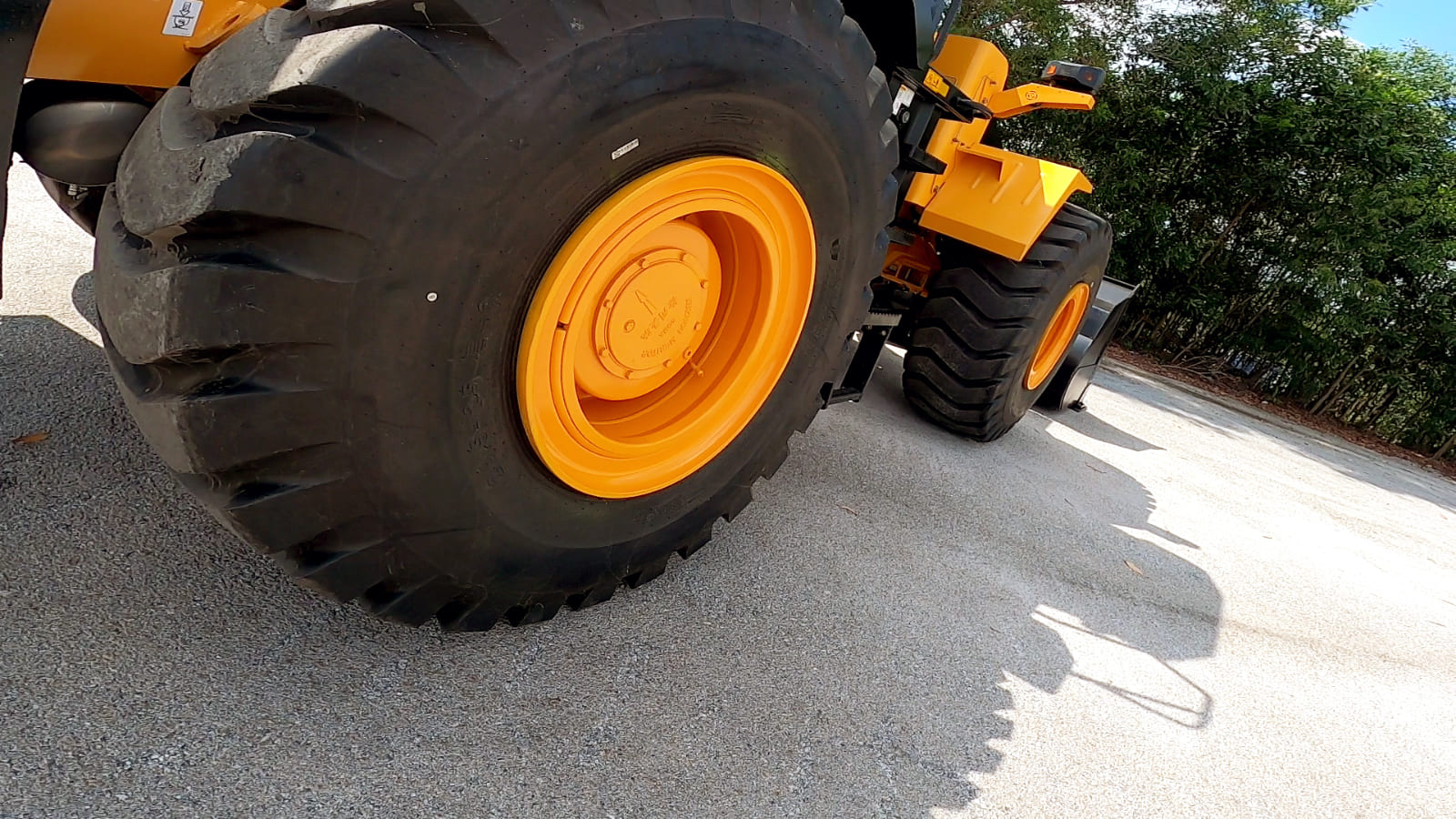

TUBELESS TIRES

Offering better traction and safer because tubeless tires don't lose air suddenly in case of a puncture.

JGM767K wheel loader tubeless tires
JGM767K wheel loader panoramic view and centralized controls

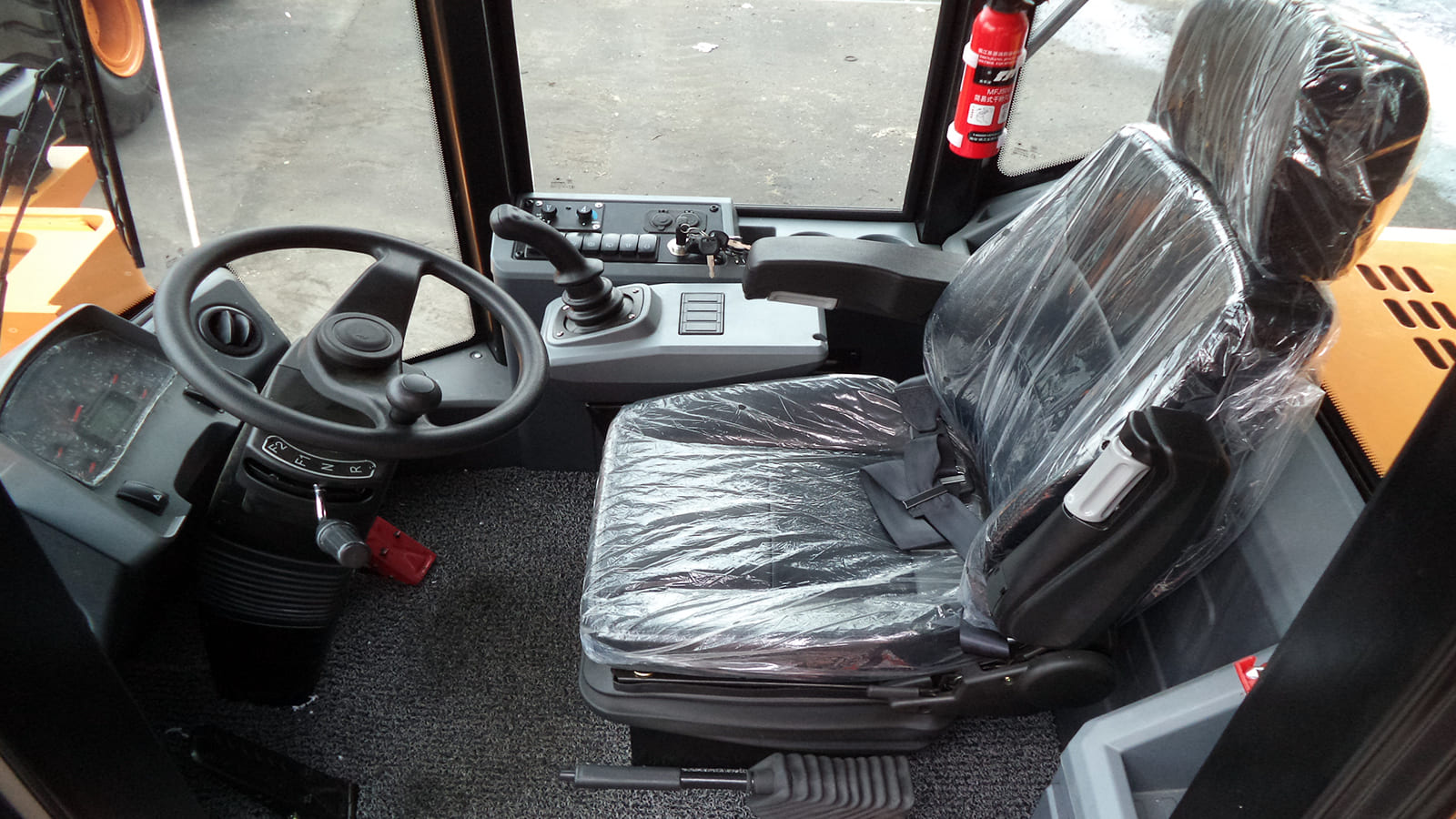

PANORAMIC VIEW & CENTRALIZED CONTROLS

New wide angle mirror provides best vision for the driver. High-level driver's seat with armrest and centralized controls.

JGM767K
SPECIFICATIONS
Loader Performance Parameter Unit
Operating Weight21000kg
Rated Load6000kg
Bucket Capacity3.5 - 5.5
Pivot Height at Max. Lifting Height4373mm
Unloading Height3215mm
Unloading Height at Max. Lifting Height1165mm
Unloading Angle45°
Max. Breakout Force≥ 200kN
Dimensions Parameter Unit
Overall Dimension (LxWxH)8380 x 2953 x 3560mm
Wheelbase3470mm
Min. Turn Radius7635mm
Fluid Level Parameter Unit
Fuel Tank Capacity290L
Hydraulic Oil Tank Capacity290L
Engine Oil24L
Engine Parameter Unit
Engine ModelWP10G240E341
Rated Power178/239kW/hp
Number of Cylinders6
Max. Torque980Nm
Displacement9.726L
Transmission Parameter Unit
Torque Converter TrackSingle-stage, Four elements
Max. Travel Speed - Forward37km/h
Max. Travel Speed - Backward17km/h
Number of Gears2 Forward, 1 Reverse
Hydraulic System Parameter Unit
Lifting Duration6.5sec
Unloading Duration1.6sec
Lowering Duration3.6sec
Total Cycling Time≤ 12sec
