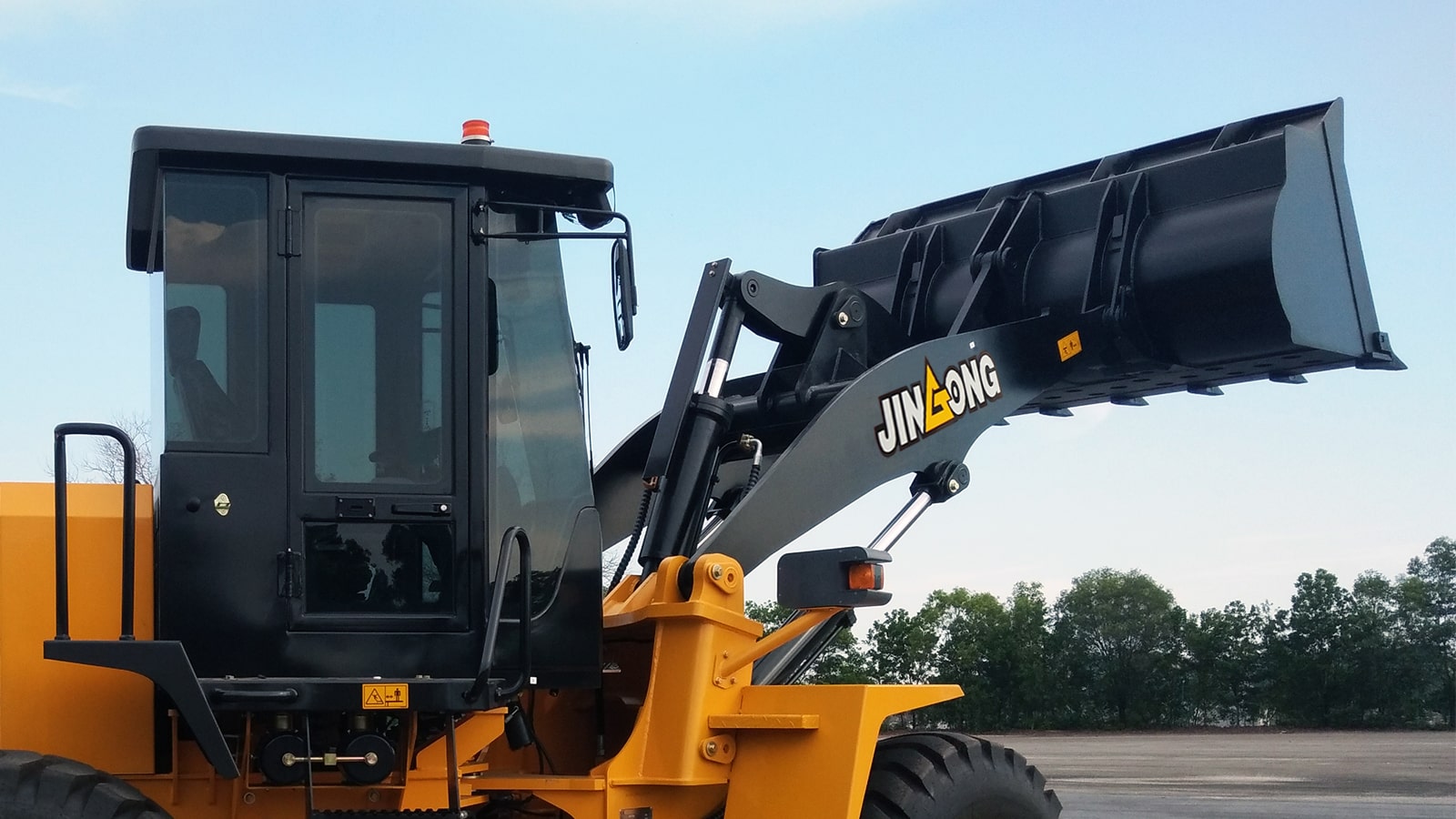

STRONGER BREAKOUT FORCE
Single rocker arm "Z-type" reversal mechanism; optimized design, large lifting force and digging force.

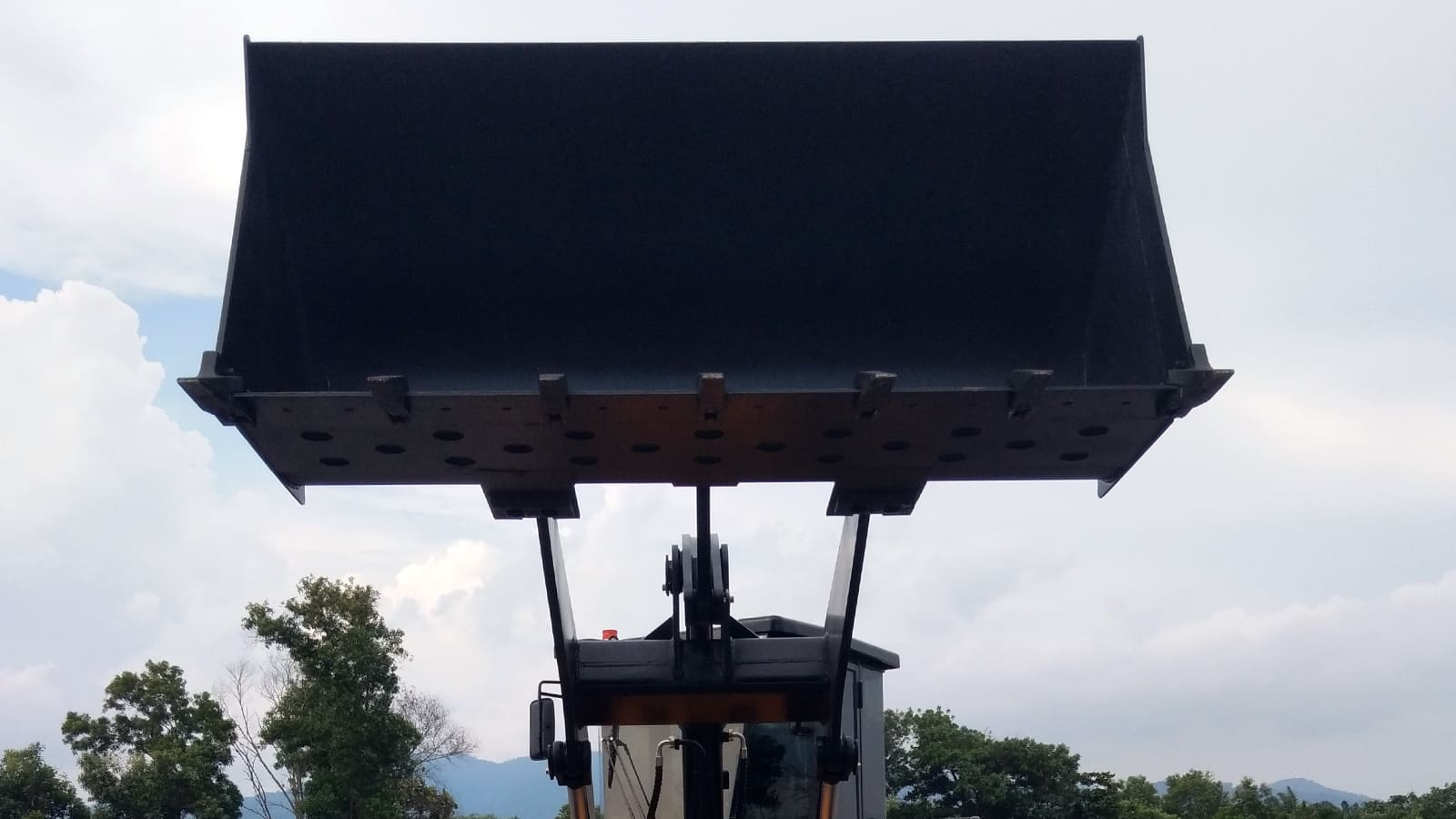

HIGH STRENGTH BUCKET
Enhanced bucket; Long wheelbase, articulated frame, stronger load capacity.

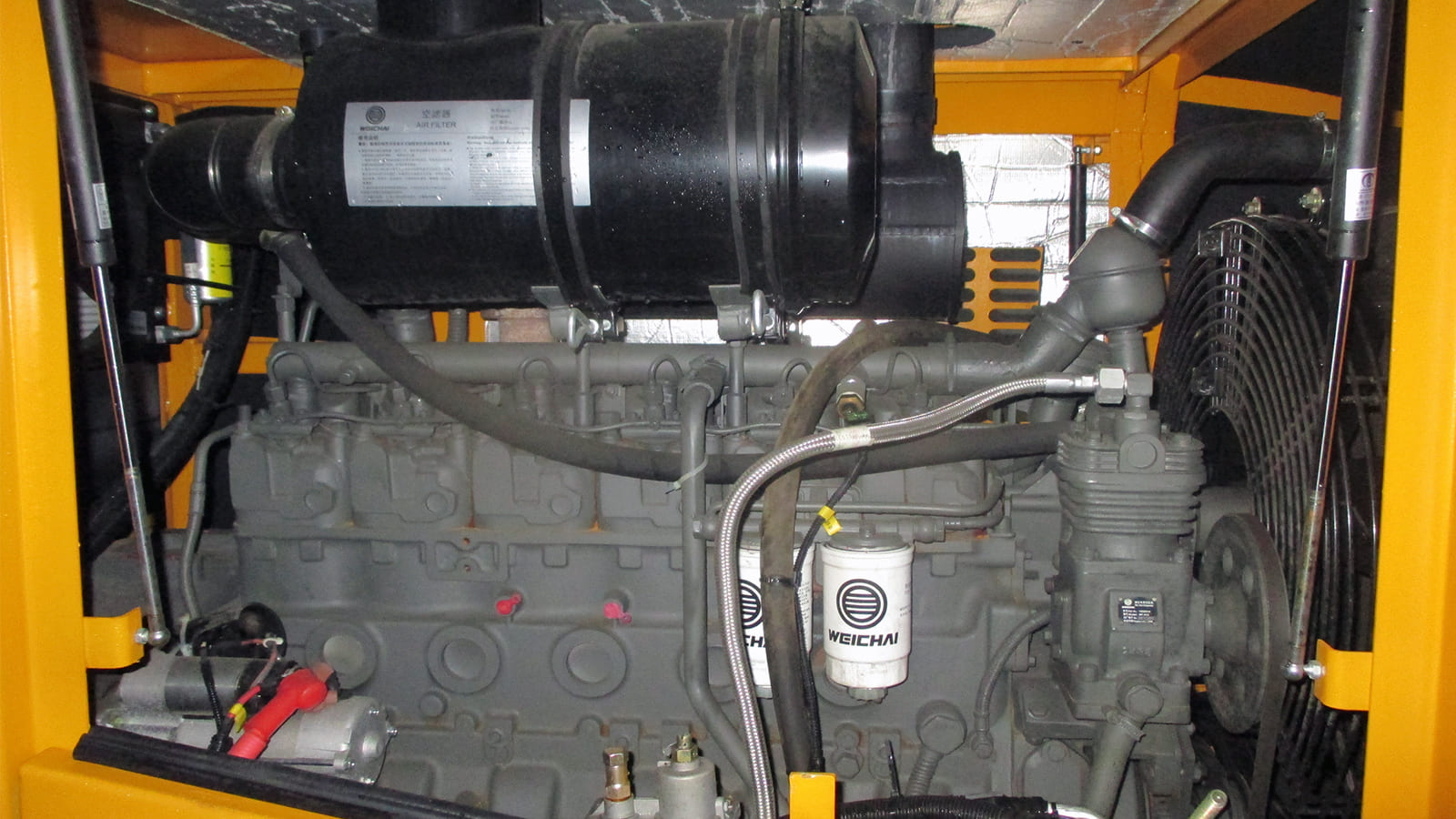

POWERFUL DYNAMIC PERFORMANCE
Weichai WP6G140E22 construction engine; High efficiency and lower energy consumption.

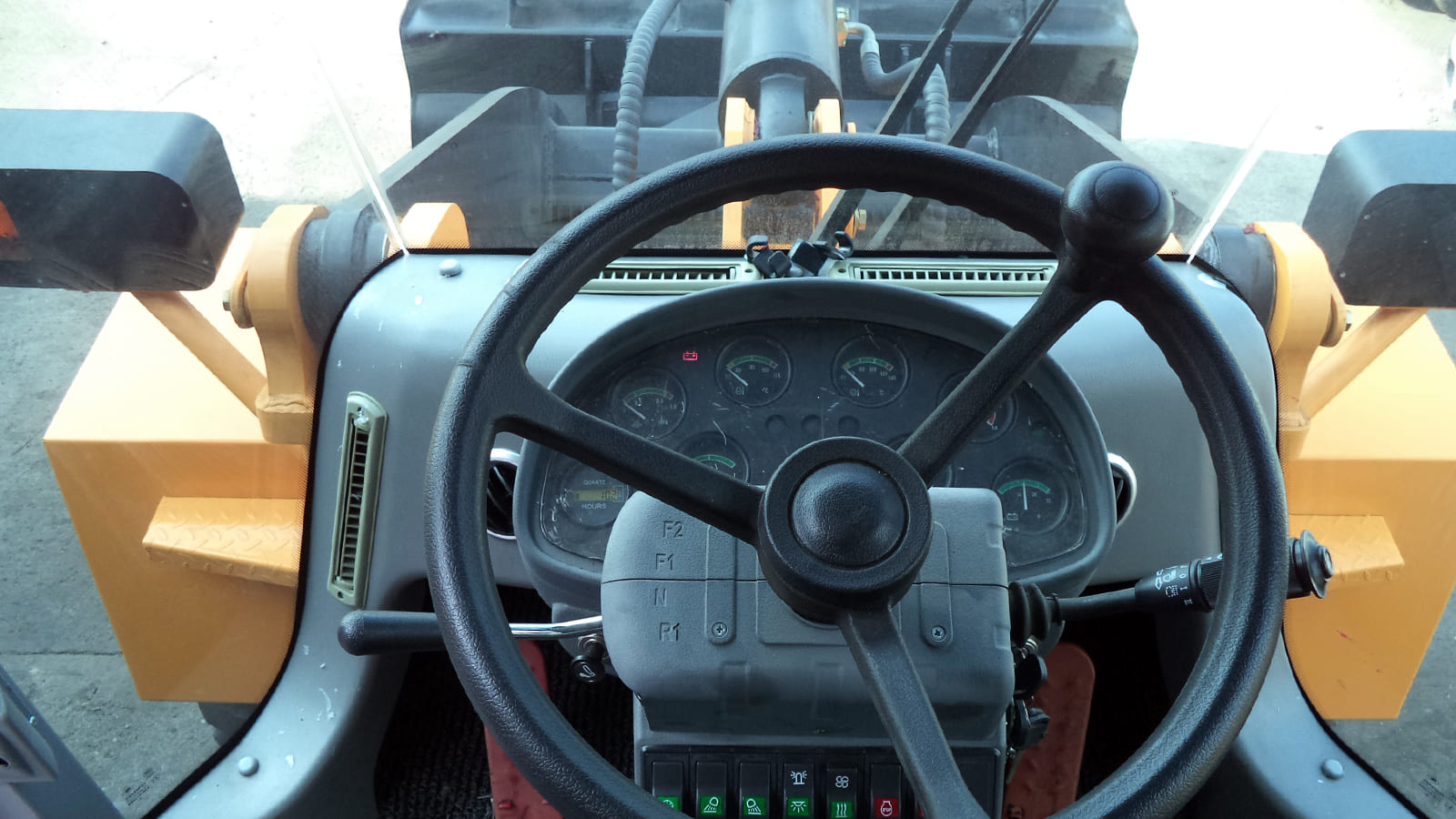

WIDER VISUAL FIELD
New driver's cab with more space and convenient operating equipment arrangement.
| Loader Performance | Parameter | Unit |
|---|---|---|
| Operating Weight | 11500 | kg |
| Rated Load | 3500 | kg |
| Bucket Capacity | 1.3 - 2.5 | m³ |
| Dumping Height | 3125 | mm |
| Dumping Reach | 1155 | mm |
| Max. Tractive Force | ≥ 100 | kN |
| Max. Breakout Force | ≥ 95 | kN |
| Dimensions | Parameter | Unit |
| Overall Dimension (LxWxH) | 7640 x 2460 x 3200 | mm |
| Wheelbase | 2870 | mm |
| Min. Turn Radius | 6415 | mm |
| Fluid Level | Parameter | Unit |
| Fuel Tank Capacity | 210 | L |
| Hydraulic Oil Tank Capacity | 210 | L |
| Engine | Parameter | Unit |
| Engine Model | WP6G140E22 | |
| Rated Power | 105 | kW |
| Transmission | Parameter | Unit |
| Max. Travel Speed - Forward | 38 | km/h |
| Max. Travel Speed - Backward | 16 | km/h |
| Number of Gears | 2 Forward, 1 Reverse | |
| Hydraulic System | Parameter | Unit |
| Raising Time Duration | ≤ 5.5 | sec |
| Total Cycling Time | ≤ 10.5 | sec |
