MOTOR GRADER
XG3165C / XG3180C / XG3200C / XG3220C
The best C Series motor grader.
*SPECS
Length 10,330 - 10,840 mm
Max. Pumping Pressure 14,500 - 17,000 kg
Engine Power 132 - 179 kW
Cutting Depth 500 mm

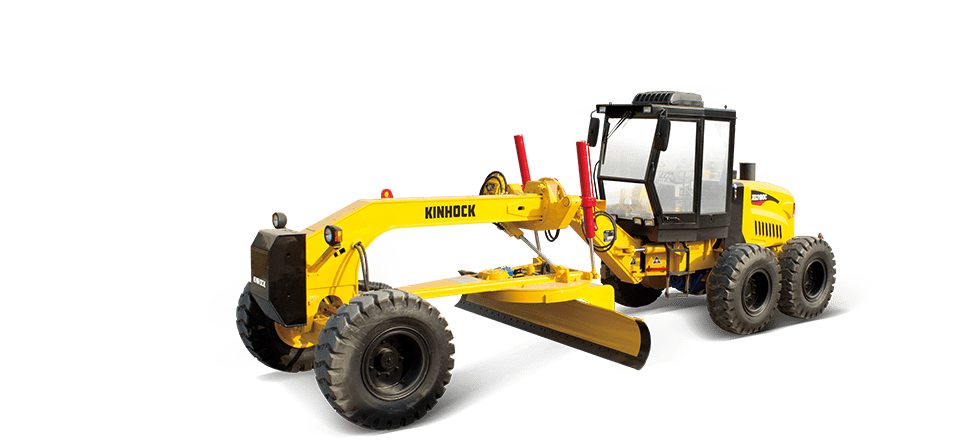

XG3165C / XG3180C / XG3200C / XG3220C Motor Grader

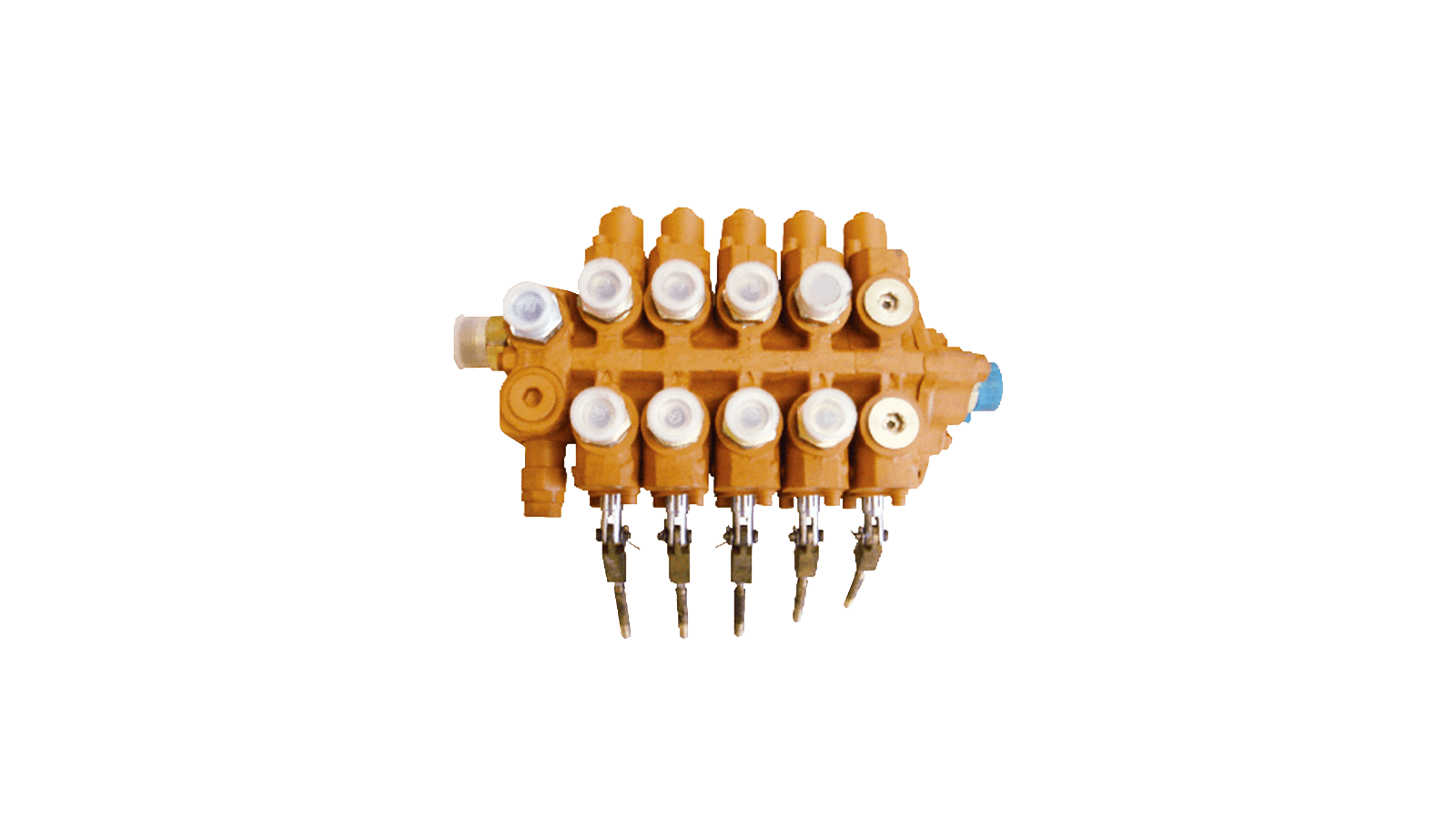

XG3165C / XG3180C / XG3200C / XG3220C motor grader HUSCO & REXROTH hydraulic valves and EATON hydraulic locks

FLEXIBLE AND RELIABLE BLADE CONTROL

Equipped with dual pump and double-circuit open system completed with HUSCO & REXROTH hydraulic valves and EATON hydraulic locks.

IMPORTED NO-SPIN DIFFERENTIAL

Equipped with special grader rear axle assembly, with built-in imported NO-SPIN differential.

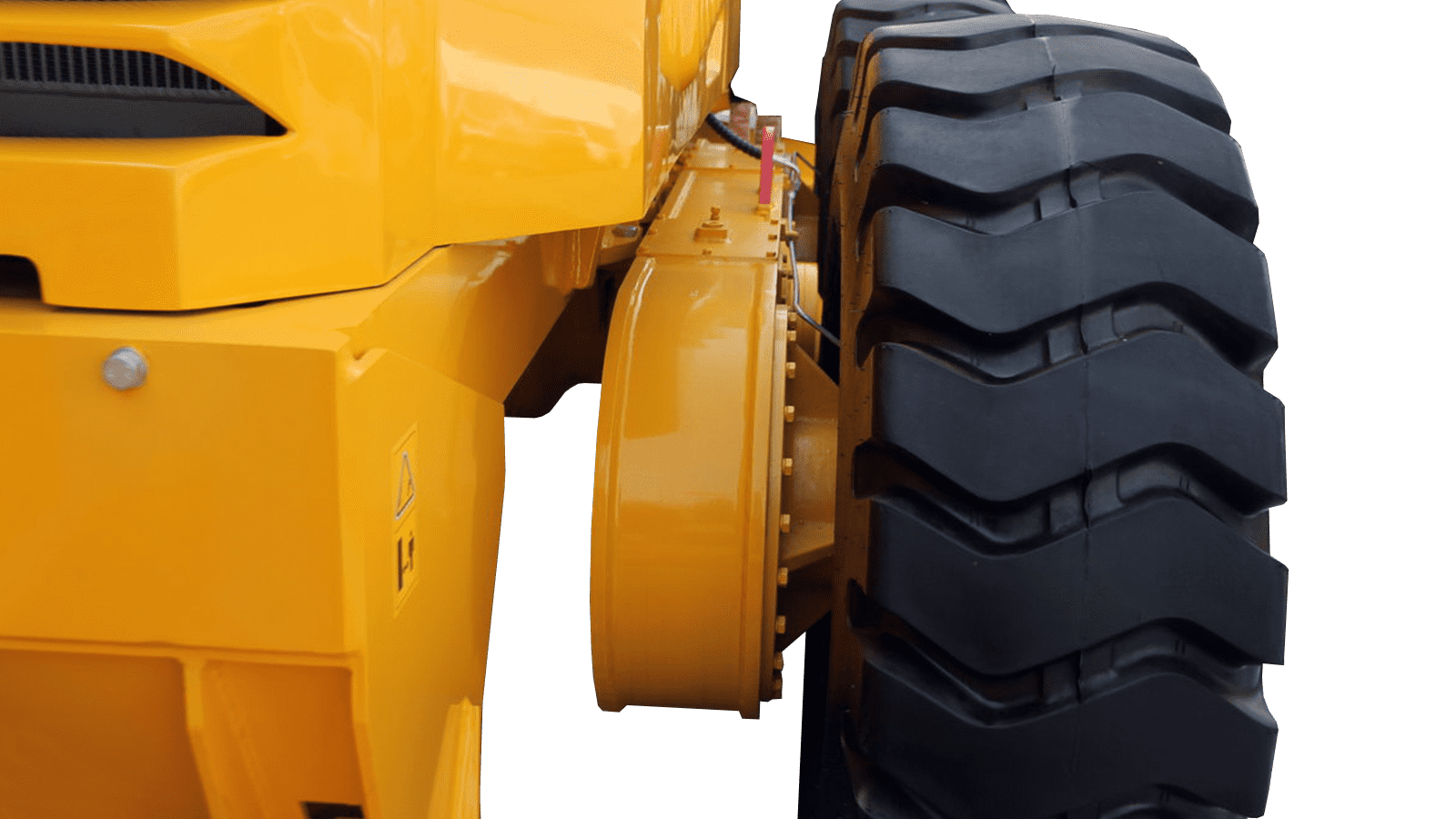

XG3165C / XG3180C / XG3200C / XG3220C motor grader no-spin differential

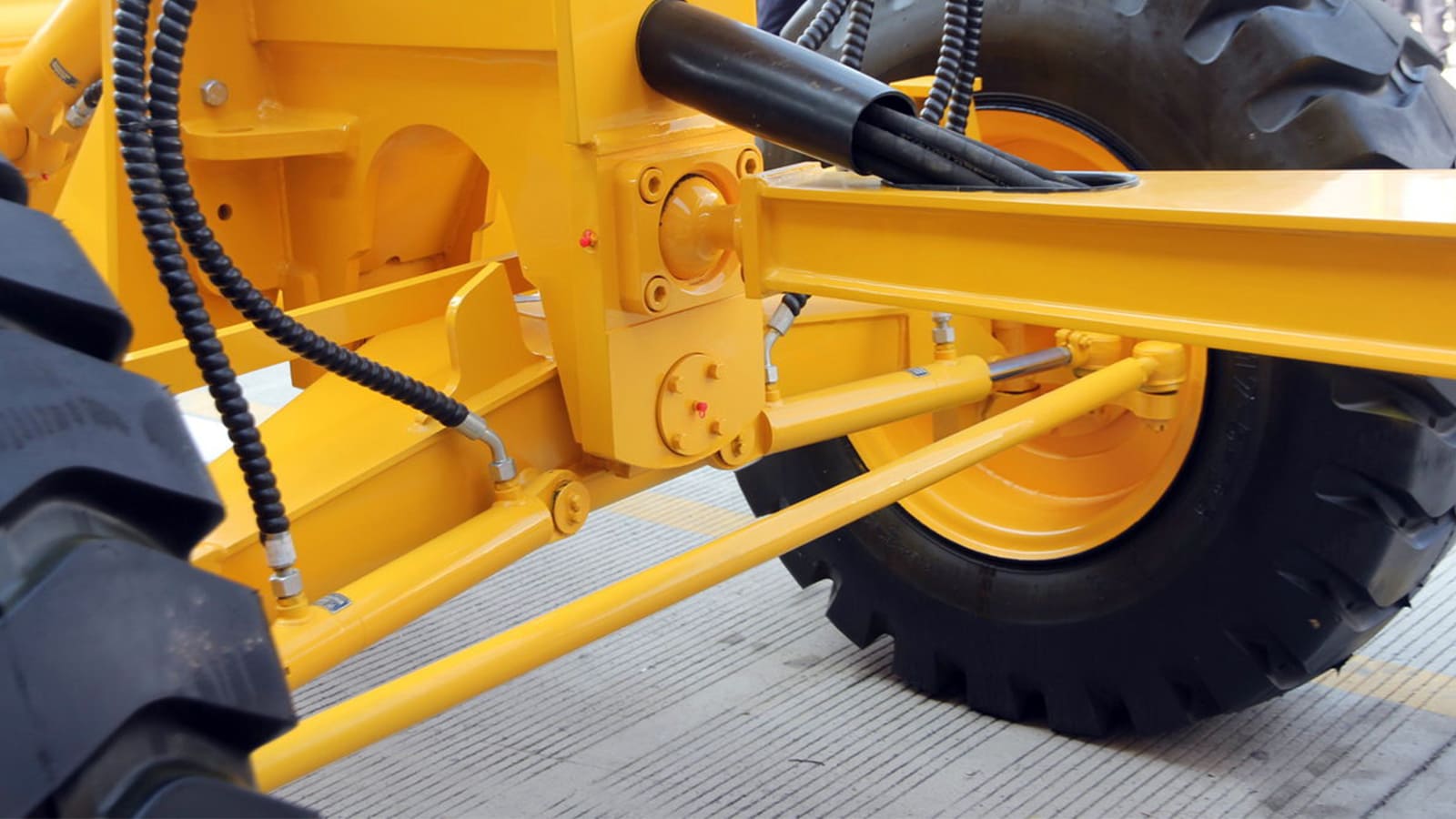

XG3165C / XG3180C / XG3200C / XG3220C motor grader strong structural front axle

STRONG STRUCTURE

Strong structural strength with the reinforced front axle.

BUILT FOR LARGE-SIZED GROUND WORK

Equipped with slewing gear ring and blade guide rail of new structure, more stable and reliable.

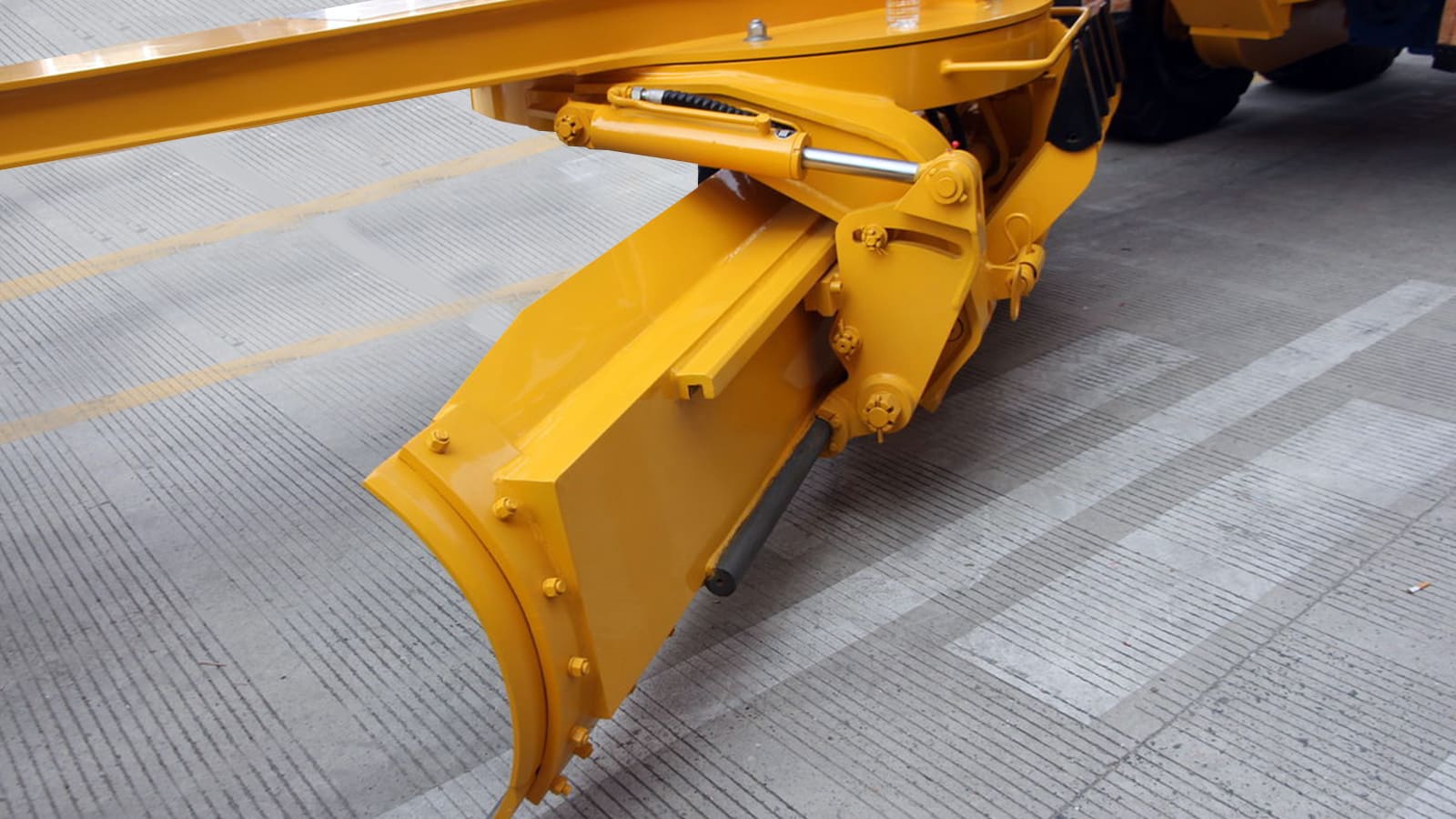

XG3165C / XG3180C / XG3200C / XG3220C motor grader center blade

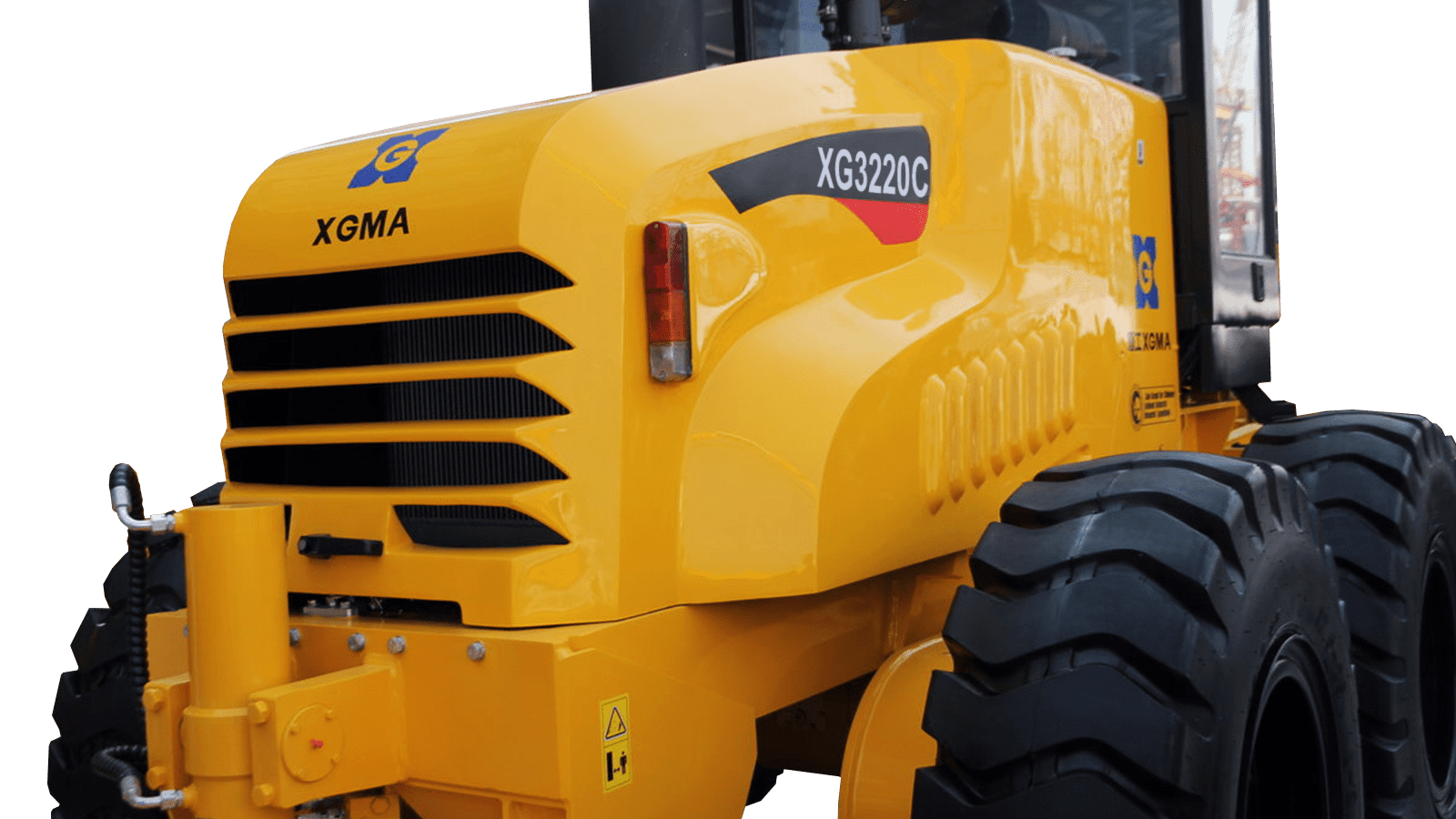

XG3165C / XG3180C / XG3200C / XG3220C motor grader streamline engine hood

STREAMLINE ENGINE HOOD

New engine hood with a novel and unique shape ensures easy maintenance and heat dissipation.

OPTIONAL WORKING DEVICE

Front dozer, rear ripper, intermediate ripper and automative leveling device.

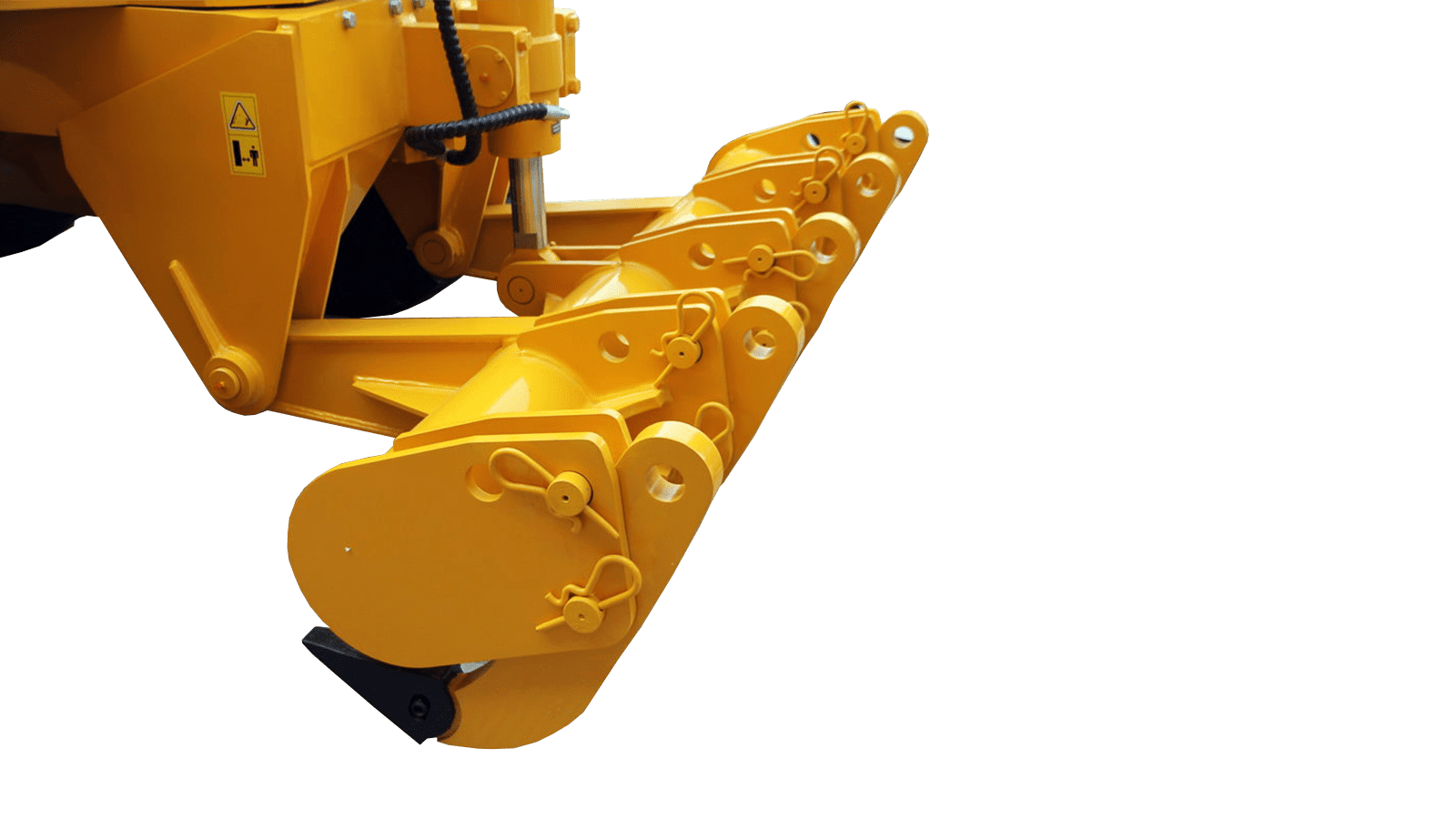

XG3165C / XG3180C / XG3200C / XG3220C motor grader rear ripper
XG3165C / XG3180C / XG3200C / XG3220C
SPECIFICATIONS
XG3165C XG3180C XG3200C XG3220C Unit
EngineManufacturerDongfeng CumminsDongfeng Cummins /
Shanghai Diesel Engine		Dongfeng CumminsDongfeng Cummins
Model6BTAA5.9-C1806BTA5.9-C180 /
SC8D190.1G2		6CTAA8.3-C2156CTA8.3-C240
Rated Power132/180132/180 / 140/190160/215179/240kW/HP
Rated Speed2200220022002200rpm
BladeHeight x String Height3660 x 6103965 x 6103965 x 6104270 x 610mm
Reversing Angle360°
Max. Blade Angle90°
Cutting Depth500mm
Drive TypeMotor + Worm Case
TransmissionTypeElectrohydarulic Gearshift
No. of GearsF6/R3
Max. Forward Speed37.13740.140.1km/h
Max. Reverse Speed26.823.624.124.1km/h
Drive TypeRear-axle Drive
Max. Traction Force< 80< 84< 88< 92kN
Tyre Spec.17.5-25PR12
Tyre Pressure0.26 - 0.28
Front AxleWheel Lean Angle± 17°
Steering Angle± 45°
Oscillation Angle± 15°
Ground Clearance430mm
Articulation Angle25, right and left°
BrakeType of Service BrakeHydraulic Disc Brake
Type of Parking BrakeHand-operated shoe-type brake
Type of Emergency BrakeHand-operated shoe-type brake
Weight and DimensionTotal Weight14500155001620017000kg
Basic Overall Dimension (L x W x H)8880 x 2595 x 33909080 x 2595 x 33909400 x 2595 x 33909450 x 2595 x 3390mm
Full Overall Dimension (L x W x H)10330 x 2750 x 339010530 x 2750 x 339010840 x 2750 x 339010840 x 2750 x 3390mm
