| General |
Parameter |
Unit |
| Drive Type | 6 x 4 | |
| Cab Pattern | Lift Cab | |
| Body Status | Unilateral A/C cabin | |
| Air-conditioner | Air cooling system | |
| Engine Model | WP10.380E22 | |
| Engine Power | 280 | kW |
| Transmission | FAST 10JSD180T | |
| Operation Form | Hydraulic Booster Control | |
| Clutch | 430 series single diaphgram type friction disc | |
| Front Suspension | Leaf Spring x 10 | |

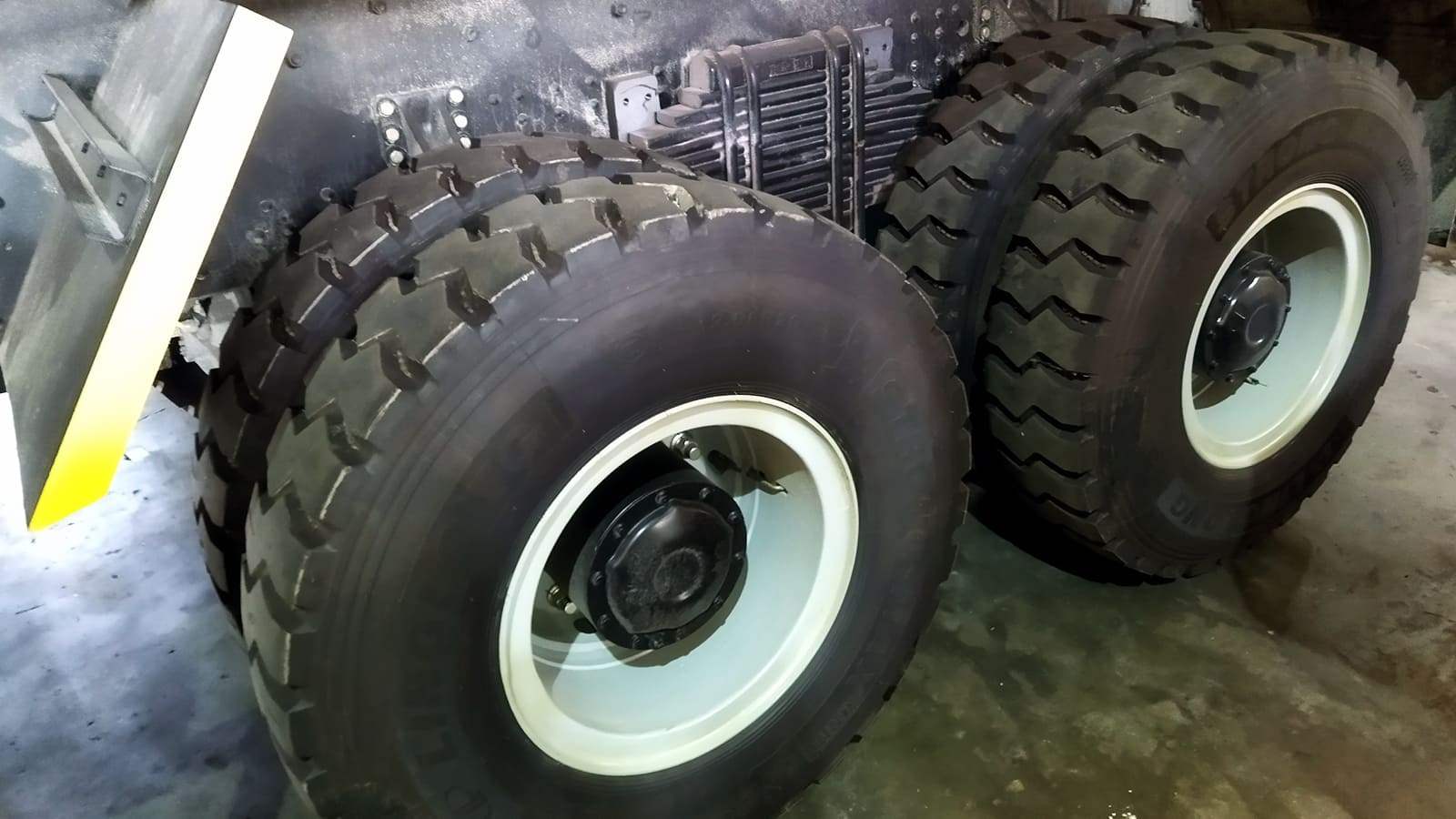

| Rear Suspension | Leaf Spring x 12 (9x26 + 3x28.5) | mm |
| Font Axle Type | HANDE 9.5T front axle | |
| Font Brake Type | Drum Brake | |

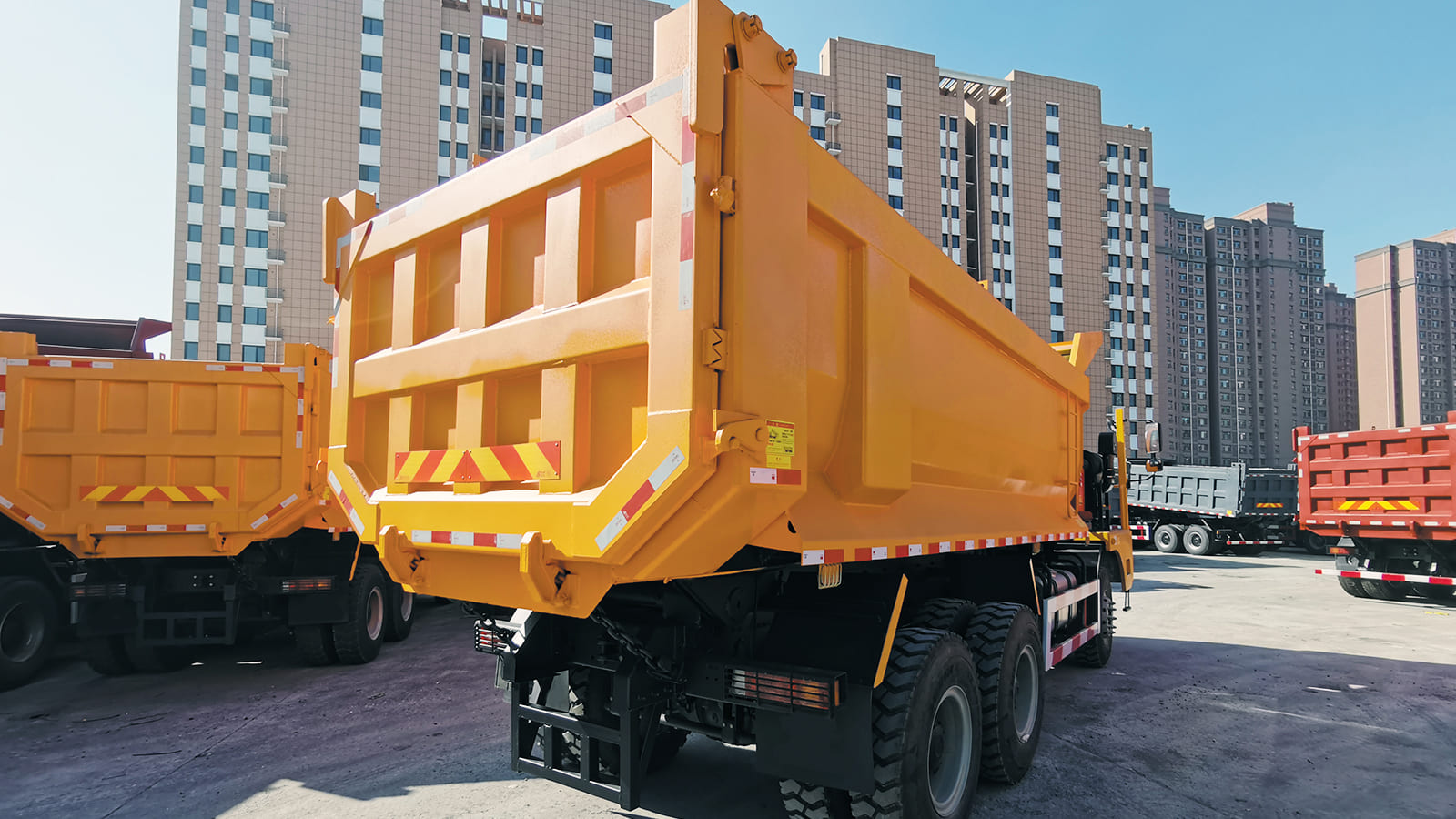

| Rear Axle Type | HANDE 16T double reduction axle | |
| Rear Housing Type | Cast axle | |
| Rear Rated Load / Ratio | 16T / 6.733 | |
| Rear Brake Type | Drum Brake | |
| Total Mass | 50,000 | kg |
| Rated Payload | 30,000 | kg |
| Kerb Weight | 17,500 | kg |
| Tyre Quantity | 10 + 1 | |
| Tyre Type | 12.00-20 Mining Tyre | |
| Rims | 8.5-20 | |
| Frame Structure | Edge beam | |
| Frame Cross Section | 850 x 300 (8+7+8) | mm |
| Service Brake | Double circuit pneumatic brake | |
| Parking Brake | Spring energy storage brake | |
| Auxiliary Brake | Engine exhaust valve brake | |
| Air Filter | Desert Air Filter | |
| Muffler Type | Square muffler | |
| Fuel Tank Volume and Model | 400L Aluminium Fuel Tank | L |
| Taillight | Enhanced taillight guard | |
| Vehicle Dimensions (L x W x H) | 8950 x 2500 x 3450 | mm |
| Wheelbase | 3975 + 1400 | mm |
| Axle Load | 11,000 (front) / 34,000 (rear) | kg |
| Wheel Track | 2036 (front) / 1860 (rear) | mm |

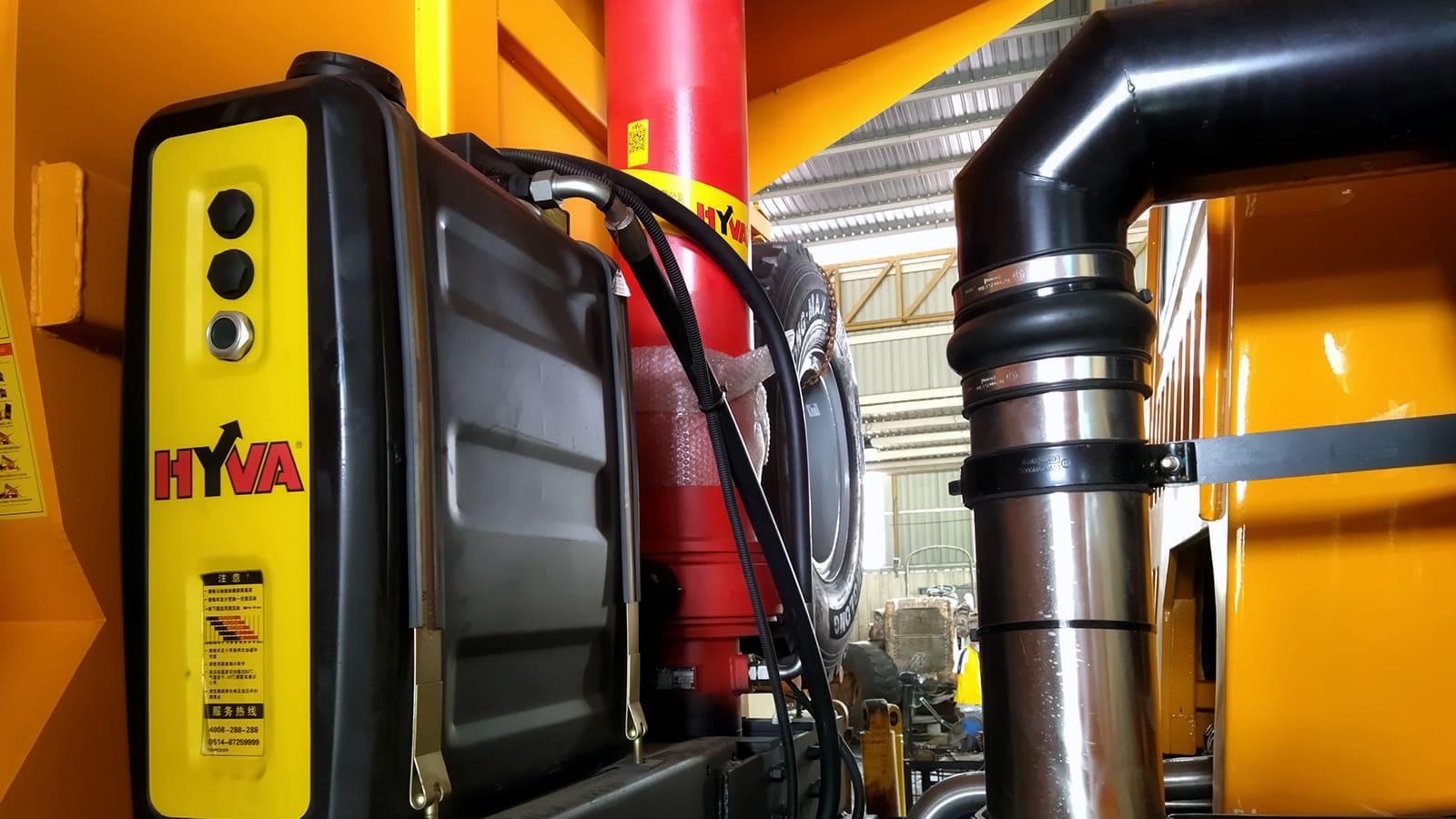

| Hydraulic Lifting System | Front lift up type | |
| Bucket Dimensions (L x W x H) | 5800 x 2300 x 1500 (thickness bottom 14mm, side 12mm) | mm |
| Passengers in Driver's Cab | Single seat (Left) | |
| Max. Speed | 75 | km/h |
