COMPACTOR
XG6102 / XG6121 / XG6141
Hydrostatic transmission double drive vibratory road roller.
*SPECS
Static Linear Load 280 - 385 N/cm
Operating Weight 10,600 - 14,000 kg
Engine Power 93 - 118 kW
Vibration Frequency 30 Hz

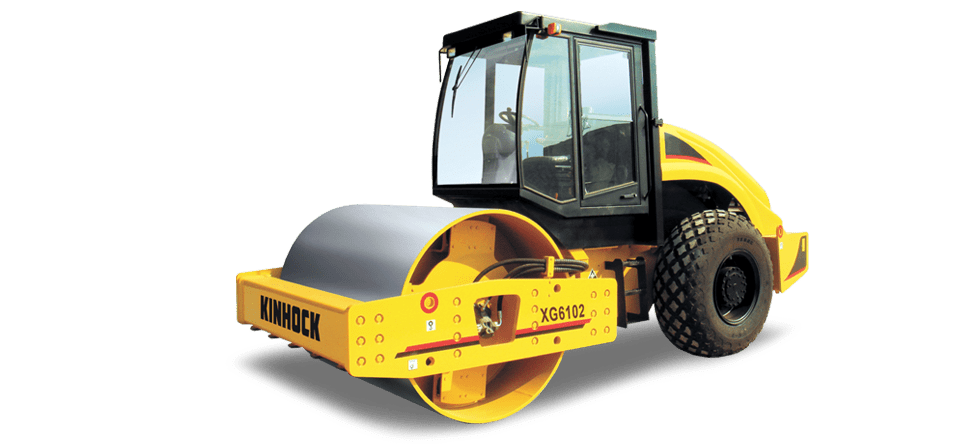

XG6102 / XG6121 / XG6141 Compactor

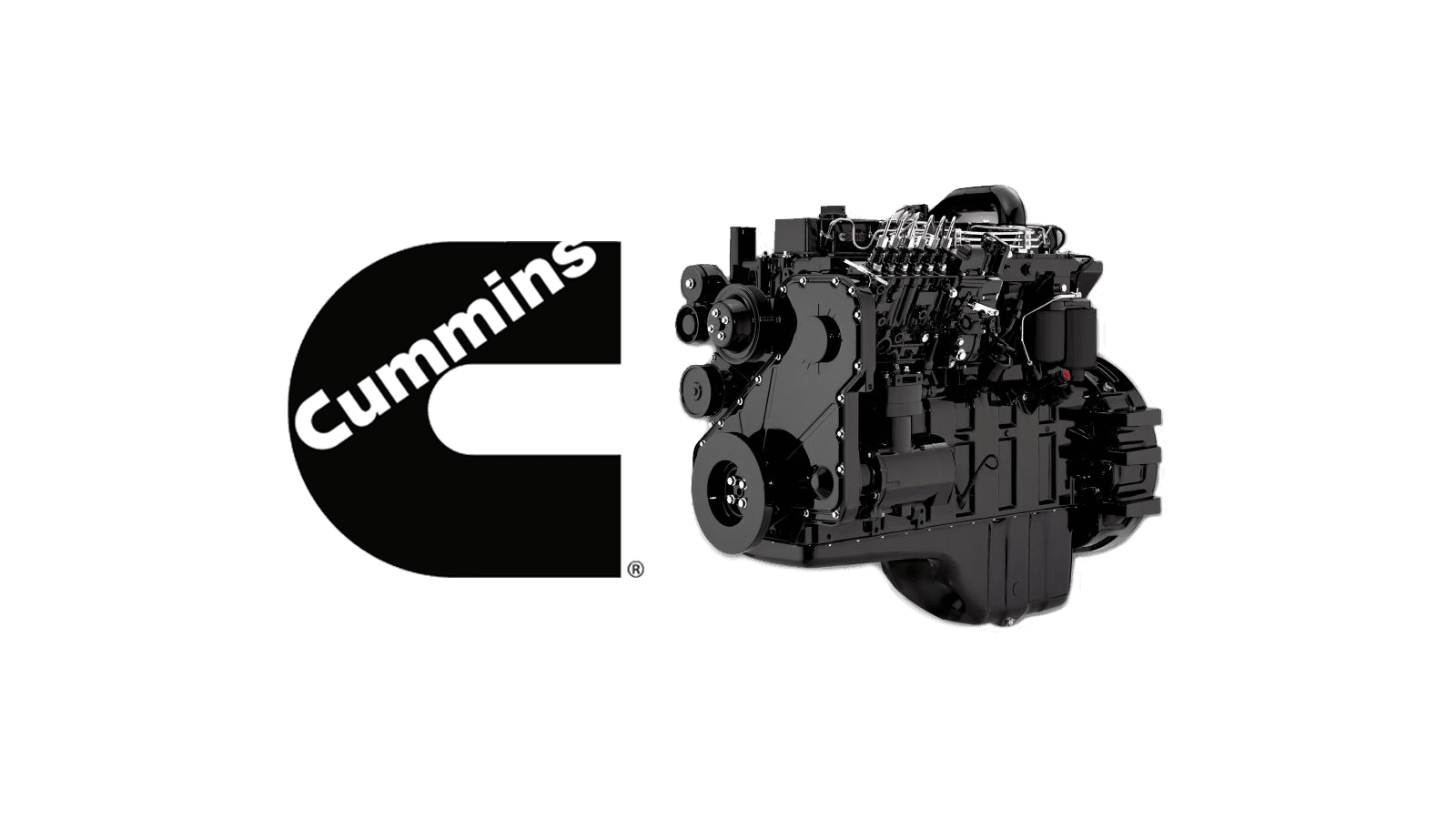

XG6102 / XG6121 / XG6141 compactor Cummins diesel engine

STABLE PERFORMANCE

Equipped with powerful Dongfeng-Cummins diesel engine.

VARIOUS WORKING CONDITIONS

Its two amplitudes accommodate to various working conditions, with the front or rear drive and the continuous travel speed control.

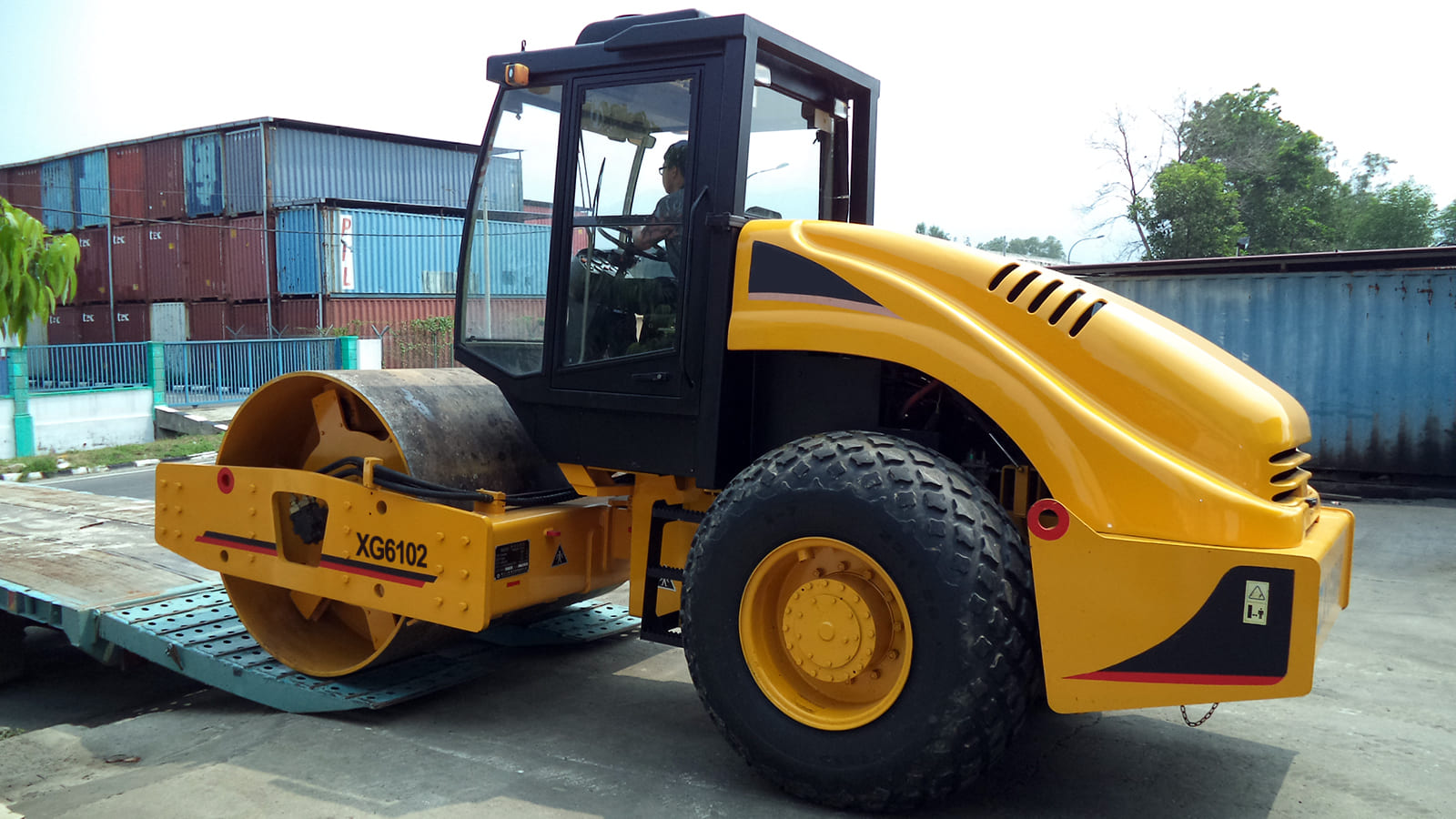

XG6102 / XG6121 / XG6141 compactor front and rear drive

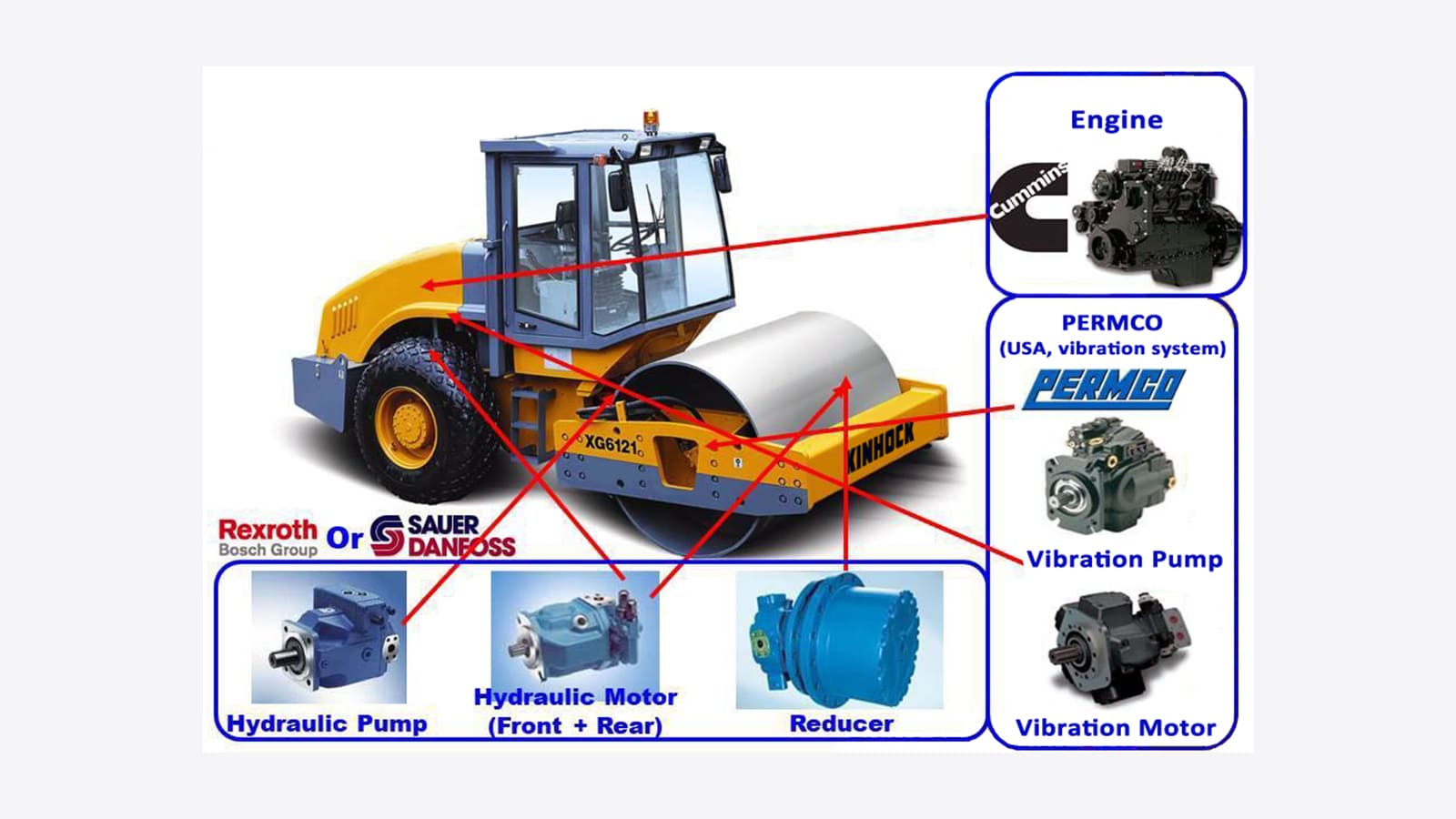

XG6102 / XG6121 / XG6141 compactor Cummins engine, Sauer Danfoss hydraulic pump, Rexroth hydraulic pump, Permco vibrating pump and motor

GENUINE PARTS

Hydraulic driving pump and motor are SAUER DANFOSS or REXROTH products, vibrating pump and motor are PERMCO or HERCULER products.

BRANDED COMPONENTS

Vibratory bearing imported from Sweden SKF or Germany FAG; Curtis instruments; Parker hydraulic hose.

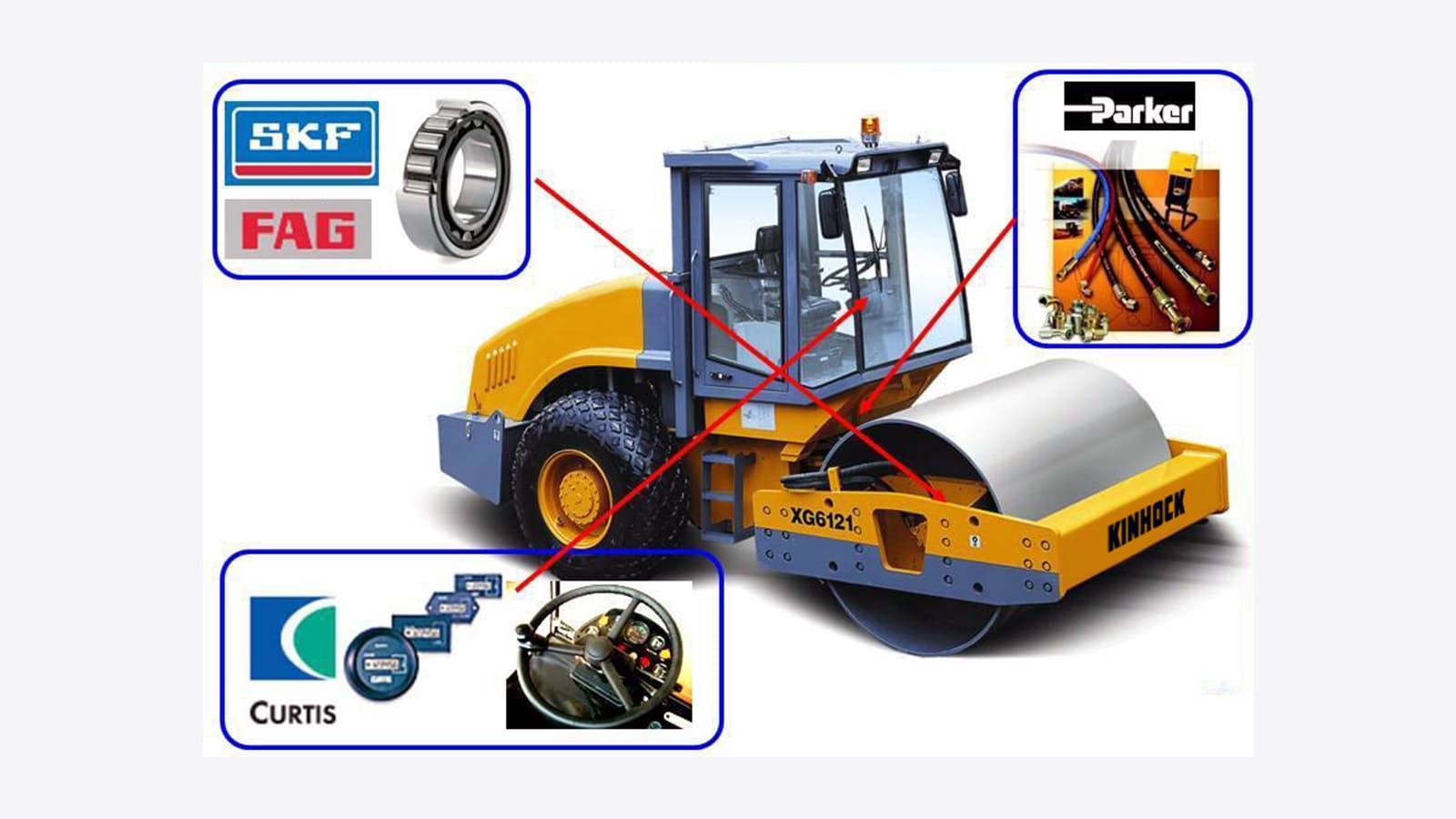

XG6102 / XG6121 / XG6141 compactor Sweden SKF bearing, Germany FAG bearing, Curtis instruments, Parker hydraulic hose
XG6102 / XG6121 / XG6141
SPECIFICATIONS
XG6102 XG6121 XG6141 Unit
Operating Weight106001210014000kg
Static Linear Load of Drum280333385N/cm
Vibration Frequency30Hz
Theoretical Amplitude1.7 / 0.851.7 / 0.851.8 / 0.9mm
Centrifugal Force225/112247/127260/135kN
Drum Weight600071008100kg
Min. Turning Radius6300mm
Max. Gradeability50%
Overall Dimension (L x W x H)5688 x 2270 x 3200mm
Travel Speed Gear I0 - 4.90 - 4.30 - 4.3km/h
Travel Speed Gear II0 - 7.30 - 6.40 - 6.4km/h
Travel Speed Gear III0 - 10.40 - 9.20 - 9.2km/h
Engine Model (Cummins)4BTAA3.9-C1256BTAA5.9-C160
Rated Power93118kW
Rated Speed2200r/min
