XG4161LBULLDOZER

Awarded ISO 9001:2000 system certificate.
With Komatsu D65A-8 bulldozer technology.

*SPECS
Blade Capacity 4,340 kg
Operating Weight 17,100 kg
Engine Power 131 kW
Width 3416 mm

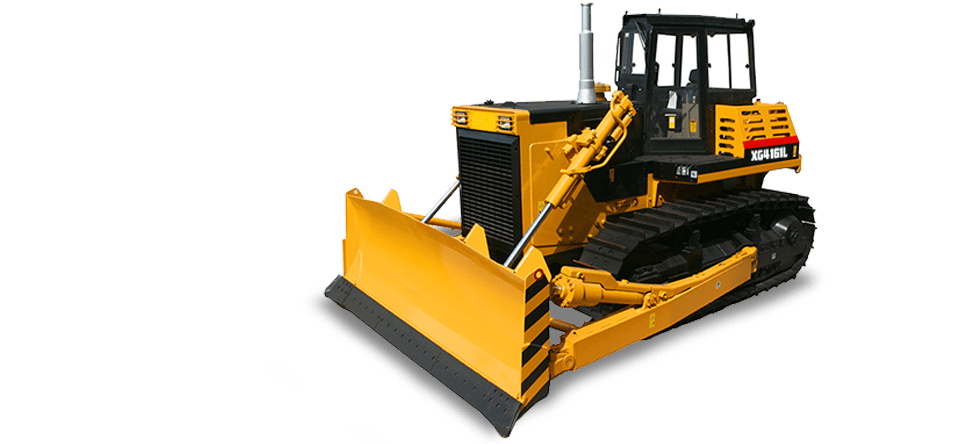

XG4161L Bulldozer

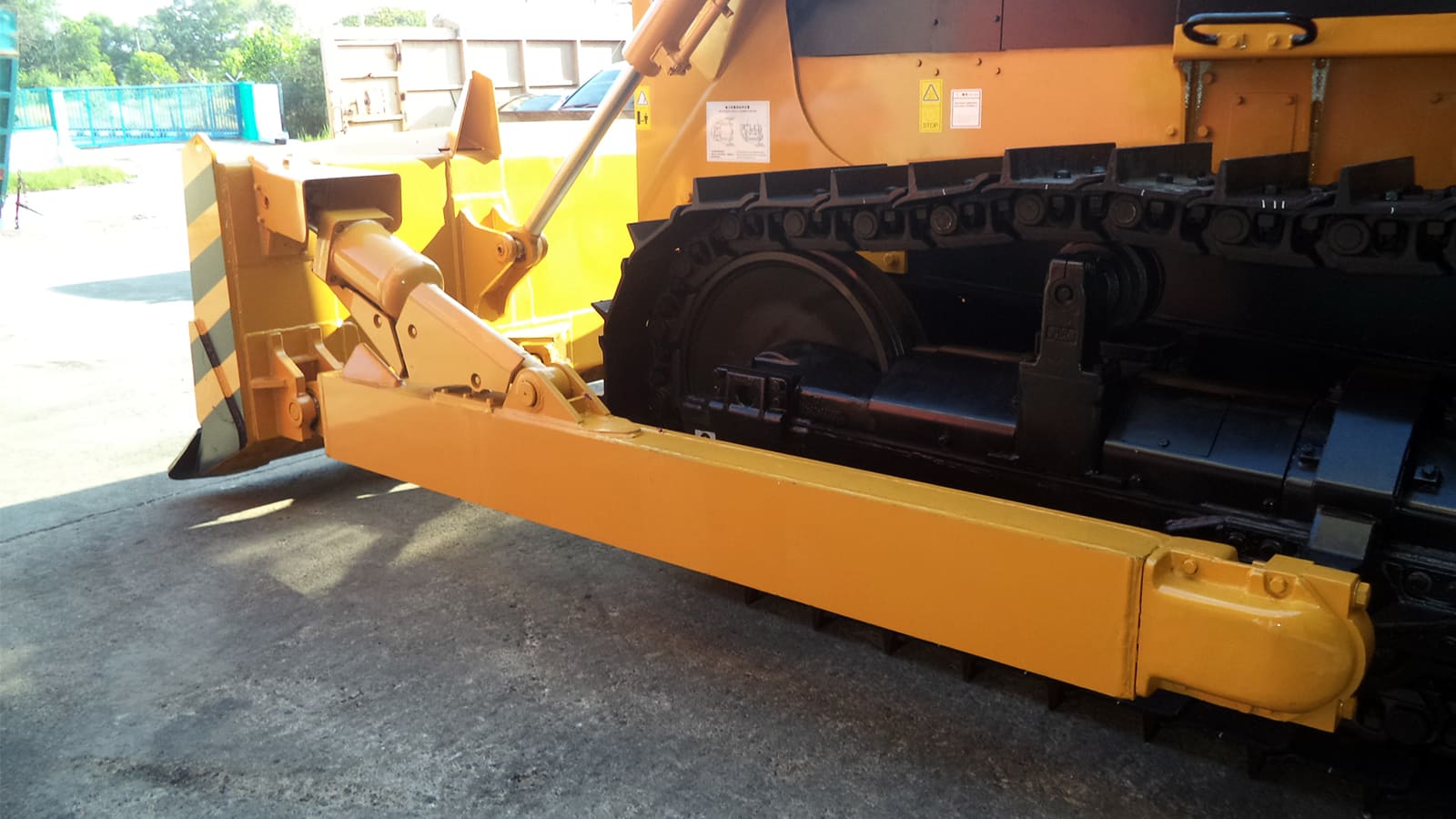

XG4161L bulldozer hydraulic drive system

HYDRAULIC DRIVE SYSTEM

Equipped with a hydraulic drive system and advanced structure for working device, which provides reliable performance and flexible operation.

STRAIGHT-TILT SHOVEL

Equipped with straight-tilting shovel as standard with 17,100kg operating weight.

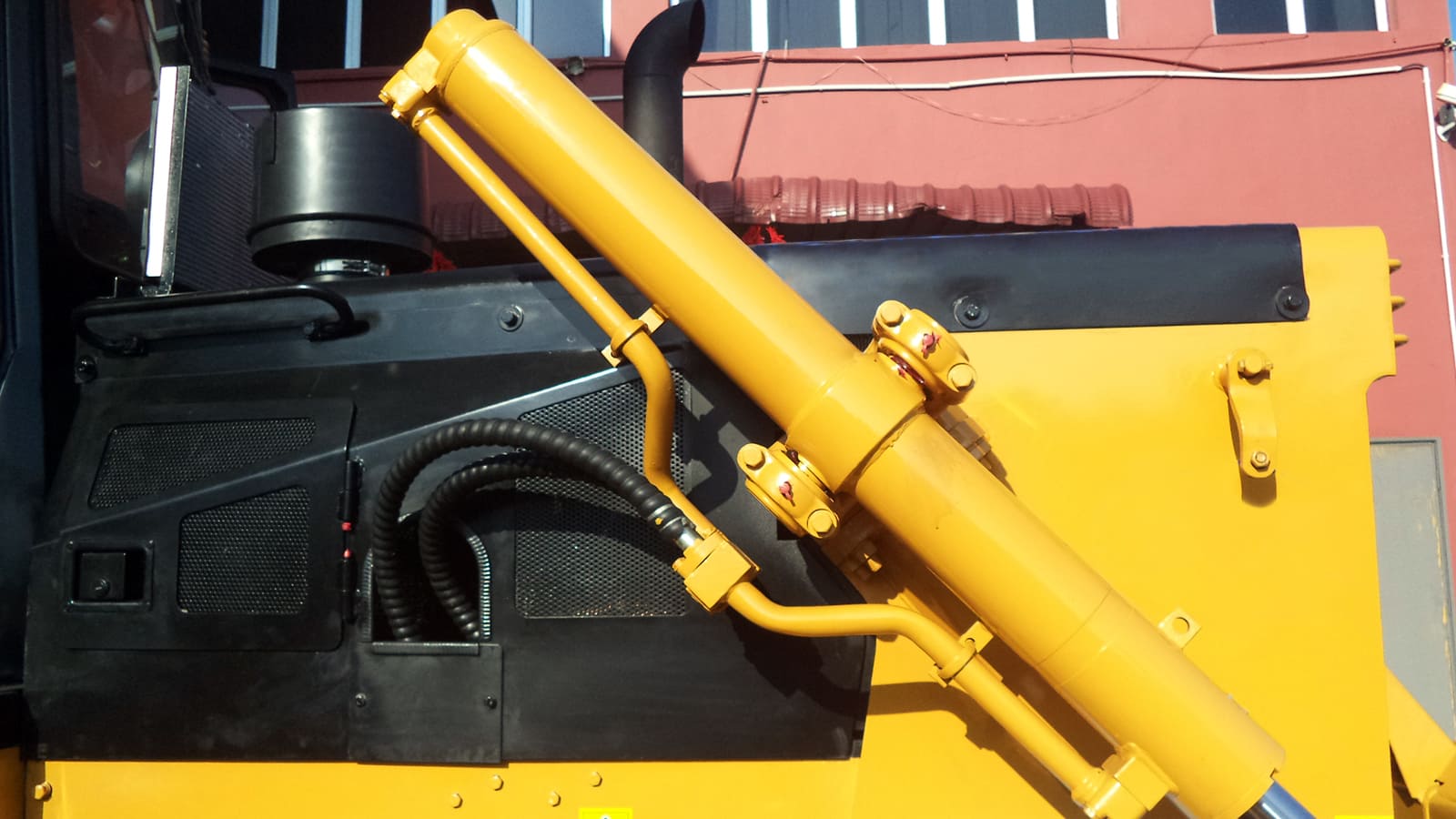

XG4161L bulldozer straight tilt shovel

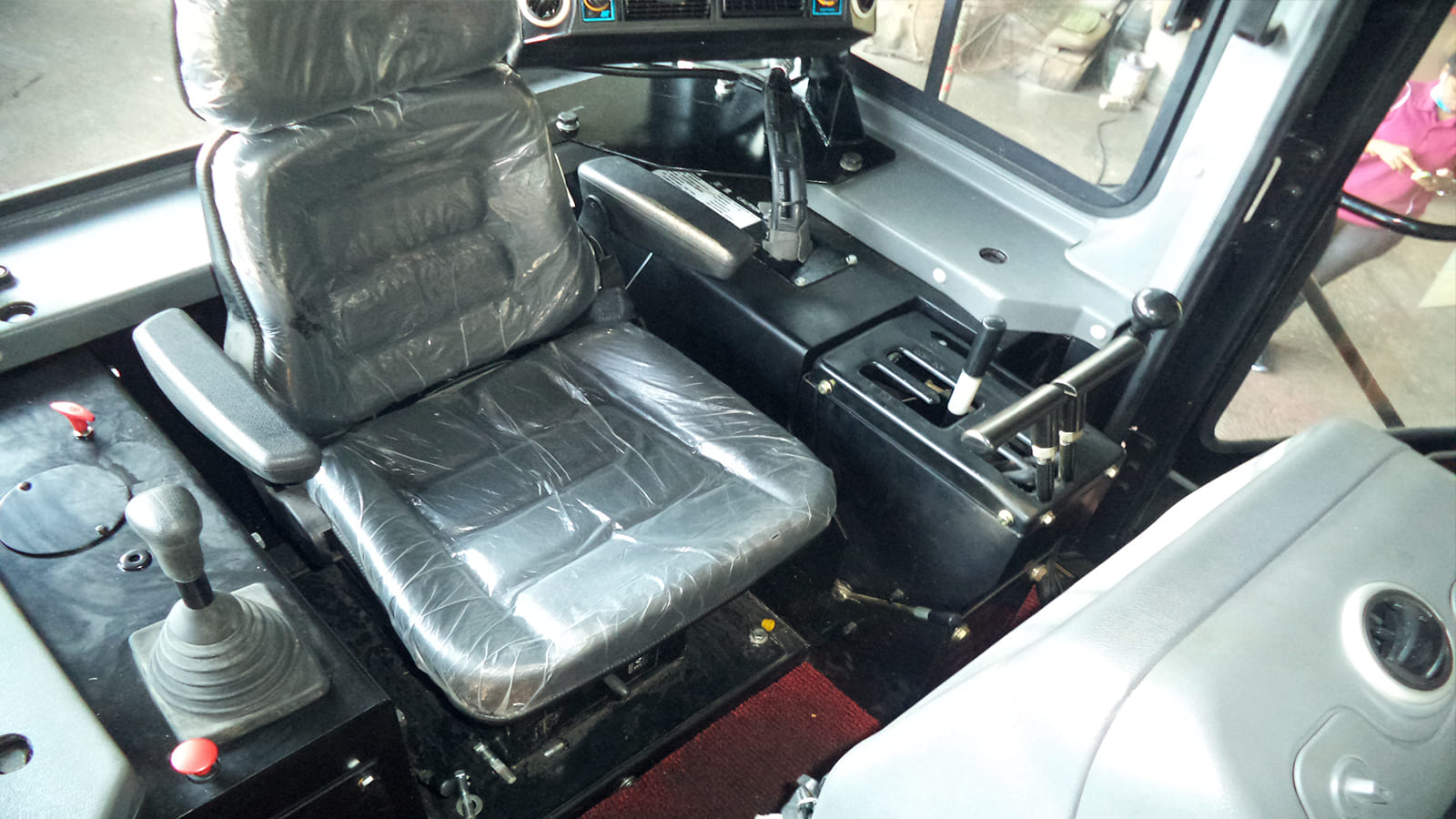

XG4161L bulldozer convenient operation cabin

CONVENIENT OPERATION

New design cabin with multifunctional dashboard and walking beam suspension design offers a high degree of comfort for operator.

MULTI SHANK RIPPER (optional)

Optionally equipped with rear ripper (3-tooth or 1-tooth available), angle blade, air conditioner, 510mmm track shoes, 610mm track shoes.

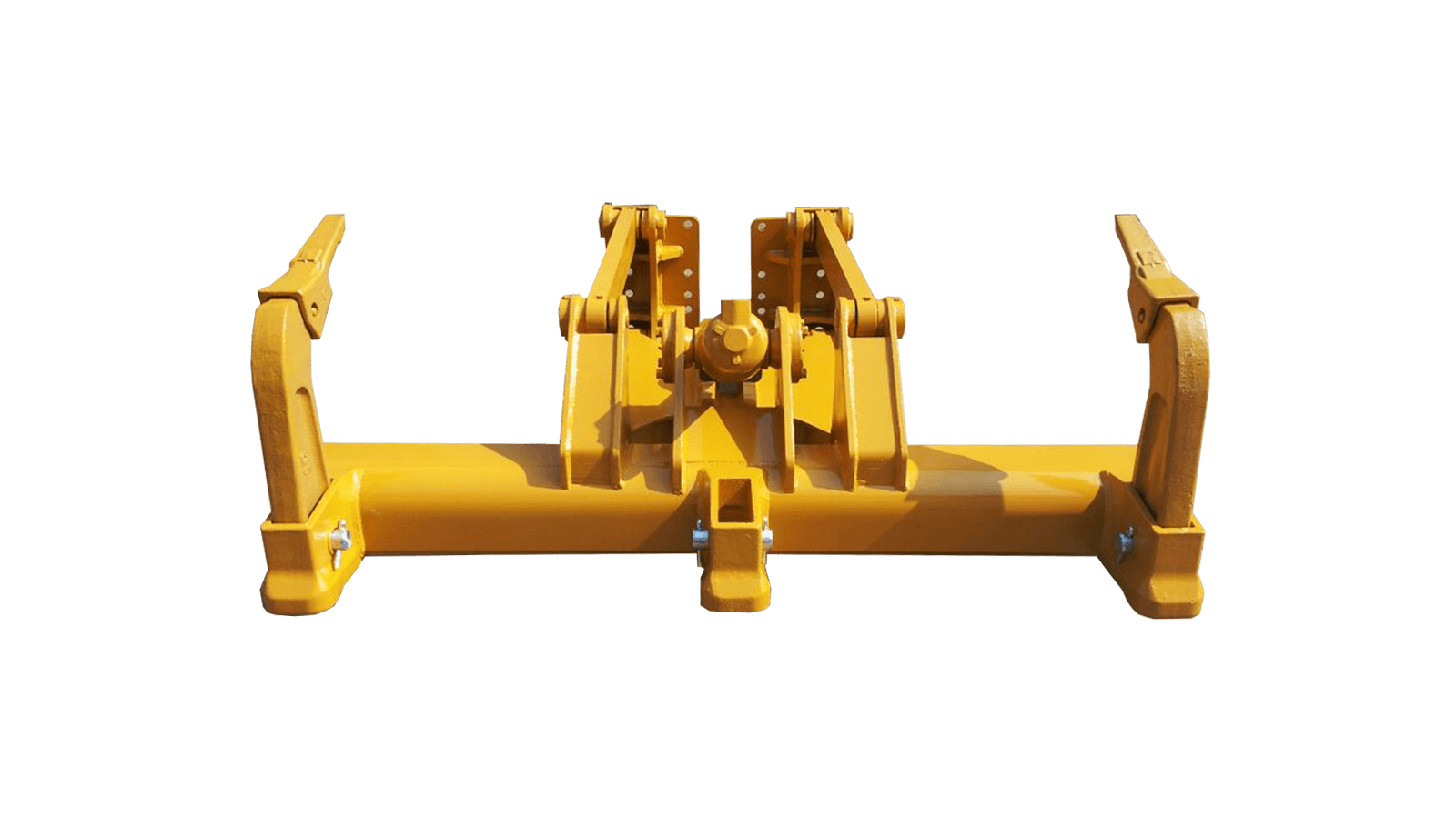

XG4161L bulldozer multi shank ripper (optional)
XG4161L
SPECIFICATIONS
General Parameter Unit
Basic Operating Weight17100kg
Basic Dimension (L x W x H)5188 x 3416 x 3060mm
With Ripper and ROPS Dimension (L x W x H)6215 x 3416 x 3060mm
Min. Ground Clearance400mm
Ground Pressure0.065Mpa
Min. Turning Radius3100mm
Gradeability30°
Blade Capacity4.5m³
Productivity270m³/h
Engine Parameter Unit
Engine ModelWeiChai WD10G178E25
Rated Speed1850rpm
Rated Power131kW
Travel Speed Parameter Unit
Forward I0 ~ 3.8km/h
Forward II0 ~ 6.6km/h
Forward III0 ~ 10.6km/h
Reverse I0 ~ 4.9km/h
Reverse II0 ~ 8.5km/h
Reverse III0 ~ 13.6km/h
Work Equipment Parameter Unit
Blade Height1168mm
Blade Width3416mm
Max. Depth545mm
Max. Lift1095mm
Max. Tilt Adjustment≥ 427mm
Pitch Adjustment55°
Ripper (Optional) Parameter Unit
Teeth1 Teethcc
Max. Digging Depth572mm
Max. Lift702mm
Teeth Weight1709kg
